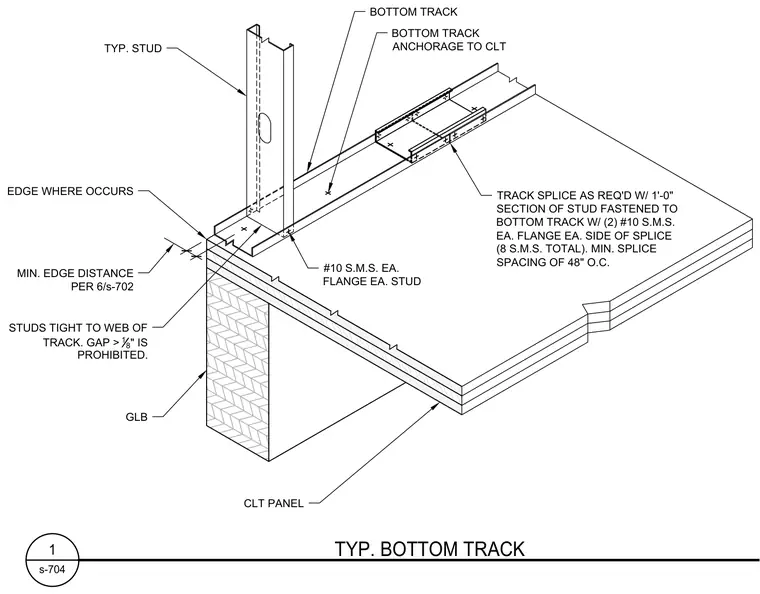

Cold-formed metal studs bear directly onto a bottom track secured to a cross-laminated timber panel and glued-laminated timber substrate. Studs fit tight to the web of the track with gaps restricted to a maximum of one-eighth inch. Each stud flange fastens to the bottom track using number ten sheet metal screws on each side. Track splices require a one-foot section of stud fastened with two number ten sheet metal screws on each flange at each side of the splice for a total of eight screws, spaced at a minimum of forty-eight inches on center.
BOTTOM TRACK ANCHORAGE TO CLT STUDS TIGHT TO WEB OF TRACK. GAP > 1 8 " IS PROHIBITED. TYP. STUD EDGE WHERE OCCURS #10 S.M.S. EA. FLANGE EA. STUD BOTTOM TRACK TRACK SPLICE AS REQ'D W/ 1'-0" SECTION OF STUD FASTENED TO BOTTOM TRACK W/ (2) #10 S.M.S. EA. FLANGE EA. SIDE OF SPLICE (8 S.M.S. TOTAL). MIN. SPLICE SPACING OF 48" O.C. MIN. EDGE DISTANCE PER 6/s-702 1 s-704 TYP. BOTTOM TRACK GLB CLT PANEL
