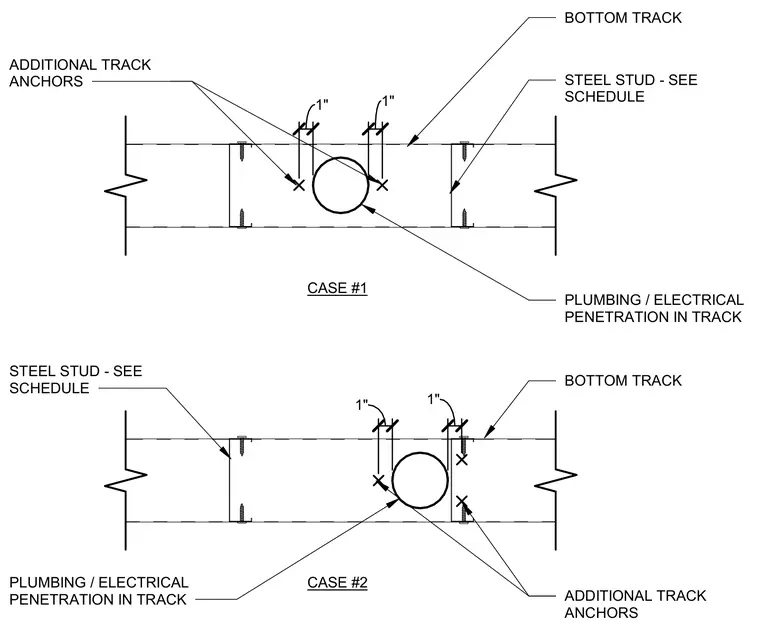

Cold-formed steel bottom track penetration detailing showing framing configurations for plumbing or electrical services. Case #1 and Case #2 illustrate placement of additional track anchors located one inch clear of the pipe or conduit penetration. Steel studs sized per schedule connect to the bottom track using standard screws.
1" 1" 1" 1" CASE #1 CASE #2 ADDITIONAL TRACK ANCHORS BOTTOM TRACK STEEL STUD - SEE SCHEDULE PLUMBING / ELECTRICAL PENETRATION IN TRACK BOTTOM TRACK ADDITIONAL TRACK ANCHORS PLUMBING / ELECTRICAL PENETRATION IN TRACK STEEL STUD - SEE SCHEDULE
