Stud rail shear reinforcement terminates at the face of the column typically, with the edge of the stud rails aligned with the column faces unless noted otherwise. The slab edge maintains a standard two-inch typical dimension and a four-inch maximum dimension relative to the support.

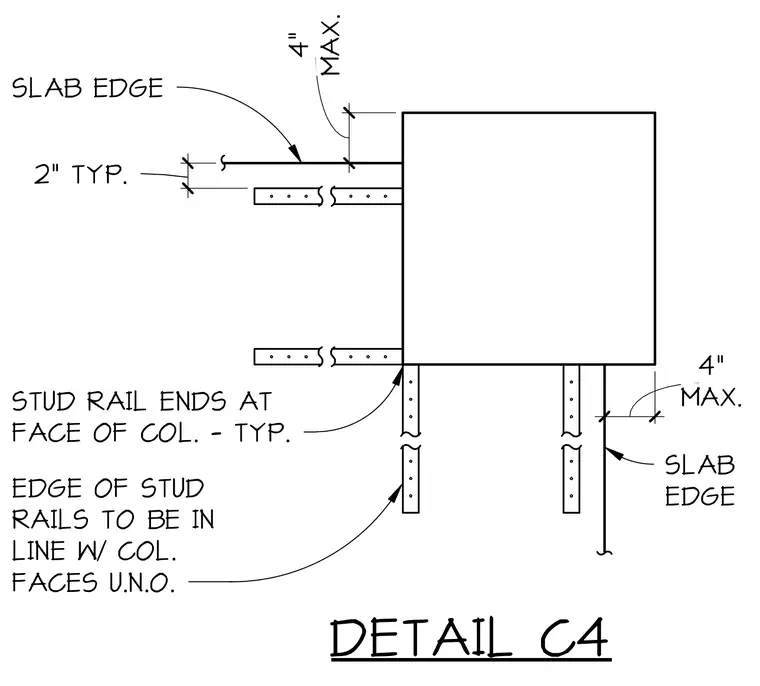

SLAB EDGE STUD RAIL ENDS AT FACE OF COL. - TYP. EDGE OF STUD RAILS TO BE IN LINE W/ COL. FACES U.N.O. SLAB EDGE DETAIL C4 2" 2" TYP. MAX. 4" MAX. 4"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
