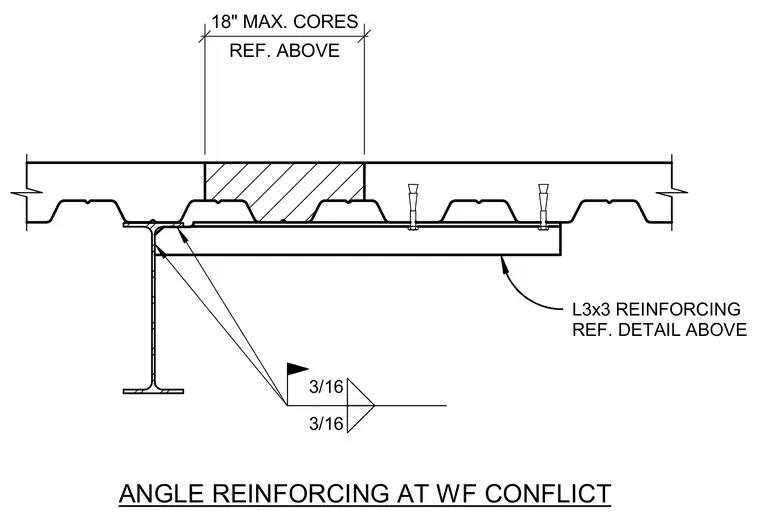

An L3x3 structural angle provides reinforcing below a concrete-filled metal deck spanning across a wide flange beam. Three-sixteenths-inch welds secure the reinforcing angle to the steel framing. Core fills span a maximum of eighteen inches at the conflict zone.
L3x3 REINFORCING REF. DETAIL ABOVE ANGLE REINFORCING AT WF CONFLICT REF. ABOVE 18" MAX. CORES 3/16 3/16
