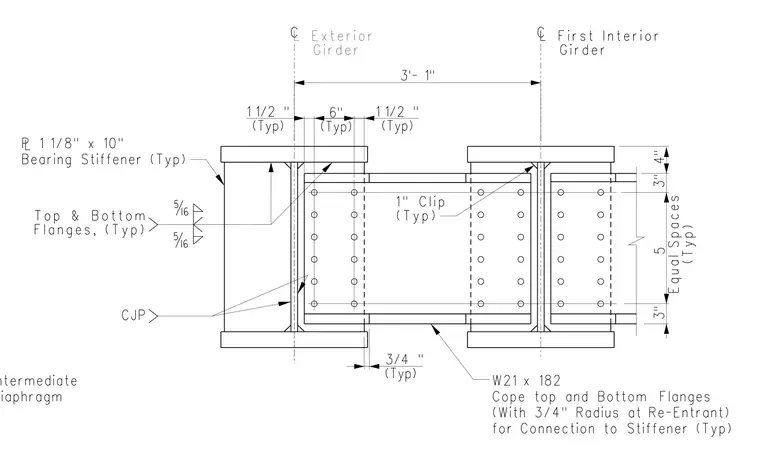

An intermediate diaphragm spans between the exterior girder and the first interior girder with a center-to-center spacing of 3 feet 1 inch. The W21x182 framing member features a 1-inch clip at the top and bottom flanges with a 3/4-inch radius at the re-entrant cut for connection to the stiffeners, and the top and bottom flanges are coped. Bearing stiffeners measuring 1 1/8 inches by 10 inches are welded to the girder webs with 5/16-inch welds and complete joint penetration welds. Additional detailing includes 3/4-inch typical dimensions and 5 equal spaces for bolt patterns along the connection plate.
Diaphragm Intermediate Flanges, (Typ) Top & Bottom C C 3’- 1" (Typ) 1 1/2 " (Typ) 6" (Typ) 1 1/2 " L CJP 3 " 4 " 3 " ( T yp ) E qu a l S p ace s 5 (Typ) 3/4 " Girder L First Interior Bearing Stiffener (Typ) P 1 1/8" x 10" L Exterior Girder (Typ) 1" Clip for Connection to Stiffener (Typ) (With 3/4" Radius at Re-Entrant) Cope top and Bottom Flanges W21 x 182
