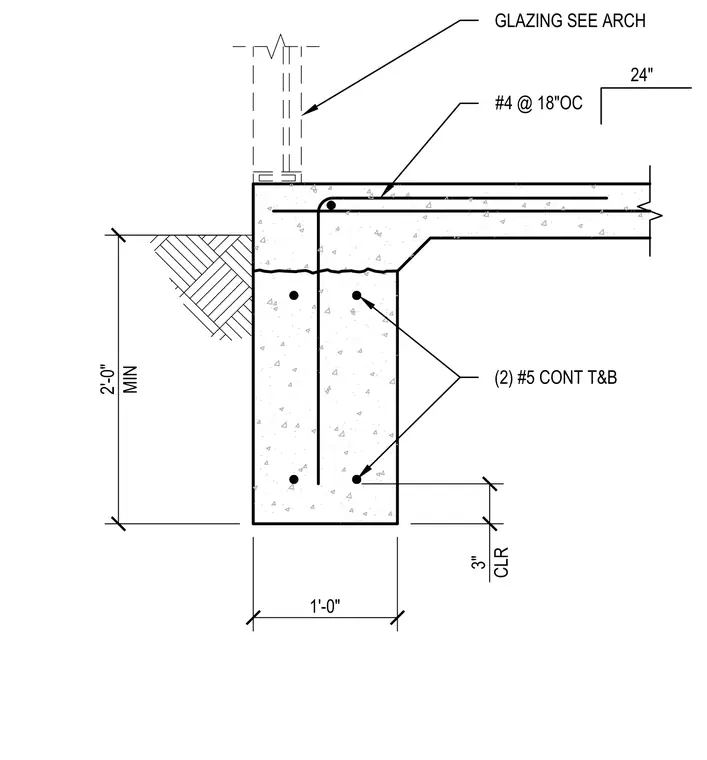

A cast-in-place concrete footing provides support for an exterior glazing system located per architectural drawings. The stem wall and footing are reinforced with two continuous number five bars placed at the top and bottom, alongside number four dowels spaced at eighteen inches on center. The footing maintains a minimum depth of two feet and a width of one foot, with three inches of concrete clearance provided for reinforcement. A stepped slab section ties into the footing assembly.
