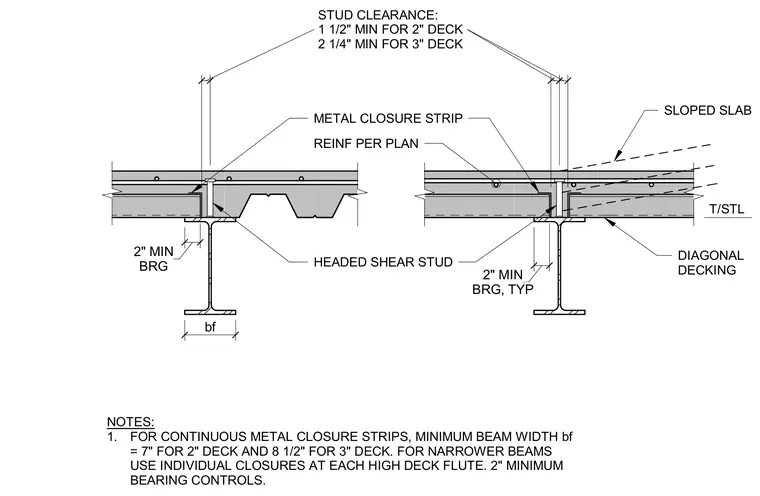

A structural steel beam supports composite metal decking with a sloped concrete slab and diagonal decking configurations. Headed shear studs are welded through the deck into the top flange of the beam, maintaining specific stud clearances of one and a half inches minimum for two-inch deck and two and a quarter inches minimum for three-inch deck. A metal closure strip spans the deck discontinuity requiring a minimum beam flange width of seven inches for two-inch deck and eight and a half inches for three-inch deck, or individual closures at each high deck flute for narrower beams. A two-inch minimum bearing is provided typically at the beam support with reinforcement detailed per plan.
T/STL bf METAL CLOSURE STRIP SLOPED SLAB DIAGONAL DECKING HEADED SHEAR STUD NOTES: 1. FOR CONTINUOUS METAL CLOSURE STRIPS, MINIMUM BEAM WIDTH bf = 7" FOR 2" DECK AND 8 1/2" FOR 3" DECK. FOR NARROWER BEAMS USE INDIVIDUAL CLOSURES AT EACH HIGH DECK FLUTE. 2" MINIMUM BEARING CONTROLS. BRG 2" MIN REINF PER PLAN BRG, TYP 2" MIN STUD CLEARANCE: 1 1/2" MIN FOR 2" DECK 2 1/4" MIN FOR 3" DECK
