Slab on Grade at Concrete Stem Wall

Materials

Elements

Beams Walls Floors / Slabs Foundations / Footings Stem Walls Site / Paving

About this detail

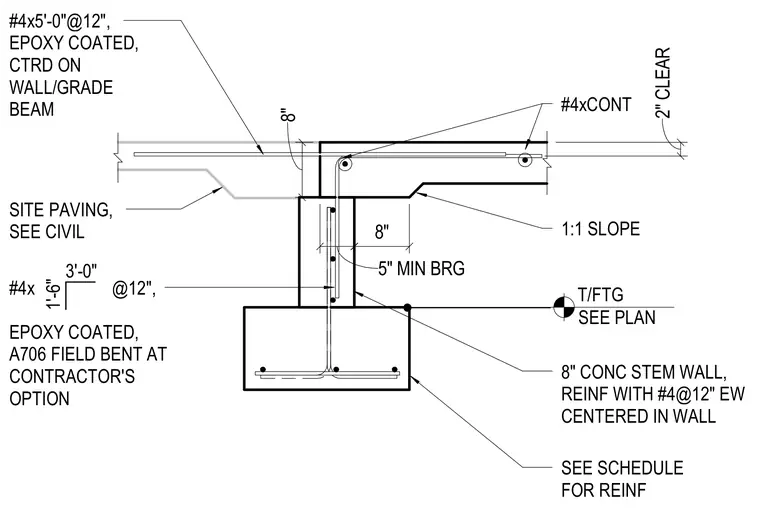

An eight-inch concrete stem wall reinforced with number four bars at twelve inches each way centered in the wall supports a concrete slab on grade. The slab features continuous number four reinforcing bars and two inches of clearance, resting with a five-inch minimum bearing on the stem wall. Epoxy-coated number four bars measuring five feet long at twelve inches on center are centered on the wall and grade beam, with A706 bars field bent at the contractor's option. Adjacent site paving is coordinated per civil drawings, and the footing reinforcement is per the structural schedule.
