Composite Steel Girder Shear Stud Layout Elevation

Materials

Steel Timber / Wood Metal (misc.)

Elements

Beams Decks

Connections

Welded Connection Shear Stud / Composite Deck Attachment

About this detail

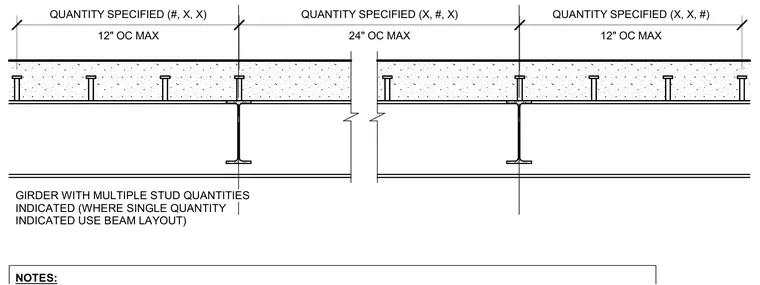

A structural steel girder supports a concrete slab via welded shear studs spaced at varying intervals on center along the span. The layout indicates specific stud quantities and spacings, including twelve-inch and twenty-four-inch maximum spacing zones. Where multiple stud quantities are indicated, the specific counts apply per zone, while single quantities default to the standard beam layout.
