Structural · S-MNYT8

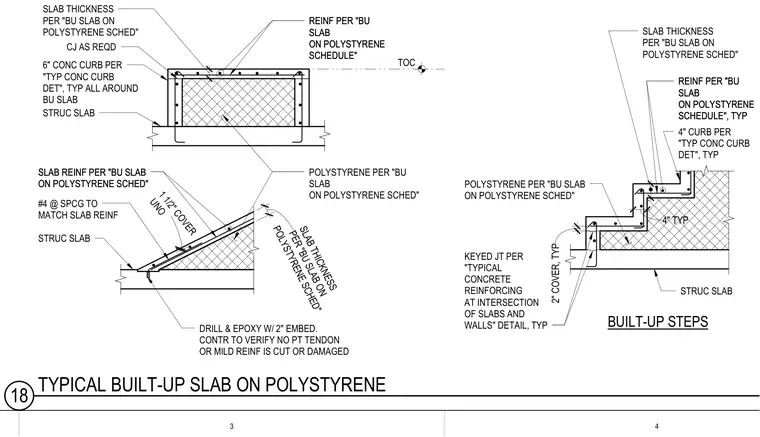

Typical Built-Up Slab on Polystyrene

Materials

Concrete

Elements

Floors / Slabs Expansion / Control Joints Site / Paving Anchors / Embeds Reinforcing

Connections

Embed Plate

About this detail

Built-up concrete slabs and steps are supported over polystyrene insulation fills on top of a structural concrete slab. The assemblies incorporate continuous slab reinforcement and concrete curbs detailed per schedule, with dowel connections anchored via drilled and epoxied bars maintaining two inches of embedment. Keyed joints and specific concrete cover dimensions are provided at intersections to control cracking and maintain monolithic action.
