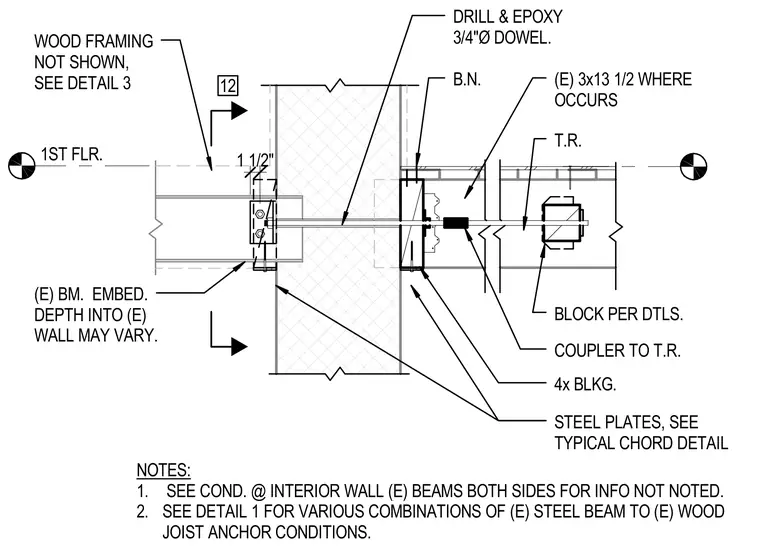

An existing steel beam connects across an interior wall using a three-quarter-inch diameter epoxy-set dowel drilled into the existing wall. The embedment depth into the existing wall may vary depending on field conditions. A threaded rod with a one-and-a-half-inch coupler extends to tie back into existing three-by-thirteen-and-a-half members where they occur. Steel plates are installed per the typical chord detail, supplemented by four-by blocking and blocking details as specified. Wood framing is omitted from this view and referenced in detail 3.
1ST FLR. (E) 3x13 1/2 WHERE OCCURS DRILL & EPOXY 3/4"Ø DOWEL. (E) BM. EMBED. DEPTH INTO (E) WALL MAY VARY. 1 1/2" COUPLER TO T.R. B.N. T.R. 4x BLKG. NOTES: 1. SEE COND. @ INTERIOR WALL (E) BEAMS BOTH SIDES FOR INFO NOT NOTED. 2. SEE DETAIL 1 FOR VARIOUS COMBINATIONS OF (E) STEEL BEAM TO (E) WOOD JOIST ANCHOR CONDITIONS. BLOCK PER DTLS. STEEL PLATES, SEE TYPICAL CHORD DETAIL WOOD FRAMING NOT SHOWN, SEE DETAIL 3 12
