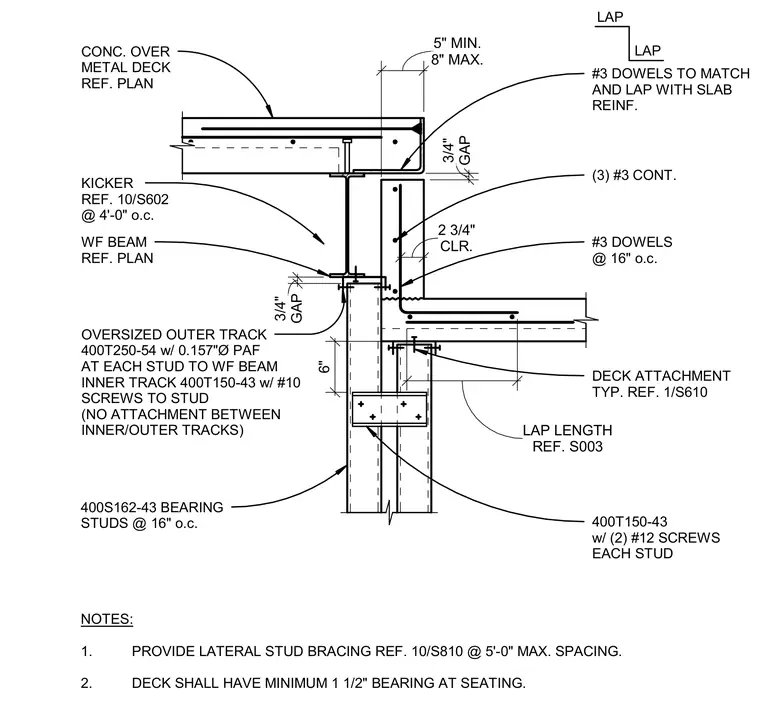

A theater seating support assembly comprises a wide-flange beam carrying a concrete slab over metal deck, with a three-quarter-inch gap maintained between components. Cold-formed steel framing consists of 400S162-43 bearing studs at sixteen inches on center, tied into an oversized outer track (400T250-54) secured with 0.157-inch diameter powder-actuated fasteners at each stud to the wide-flange beam, and an inner track (400T150-43) fastened to the studs with number 10 screws while leaving no attachment between the inner and outer tracks. Reinforcing includes number 3 dowels at sixteen inches on center, three continuous number 3 bars, and dowels lapped with slab reinforcement over a specified lap length referencing sheet S003. A kicker is referenced at four feet on center, and notes dictate lateral stud bracing at five-foot maximum spacing along with a minimum one-and-a-half-inch deck bearing at the seating.
CLR. 2 3/4" 8" MAX. 5" MIN. GAP 3/4" GAP 3/4" REF. S003 LAP LENGTH 6" NOTES: 1. PROVIDE LATERAL STUD BRACING REF. 10/S810 @ 5'-0" MAX. SPACING. 2. DECK SHALL HAVE MINIMUM 1 1/2" BEARING AT SEATING. CONC. OVER METAL DECK REF. PLAN KICKER REF. 10/S602 @ 4'-0" o.c. WF BEAM REF. PLAN OVERSIZED OUTER TRACK 400T250-54 w/ 0.157"Ø PAF AT EACH STUD TO WF BEAM INNER TRACK 400T150-43 w/ #10 SCREWS TO STUD (NO ATTACHMENT BETWEEN INNER/OUTER TRACKS) 400S162-43 BEARING STUDS @ 16" o.c. 400T150-43 w/ (2) #12 SCREWS EACH STUD DECK ATTACHMENT TYP. REF. 1/S610 #3 DOWELS @ 16" o.c. (3) #3 CONT. #3 DOWELS TO MATCH AND LAP WITH SLAB REINF. LAP LAP
