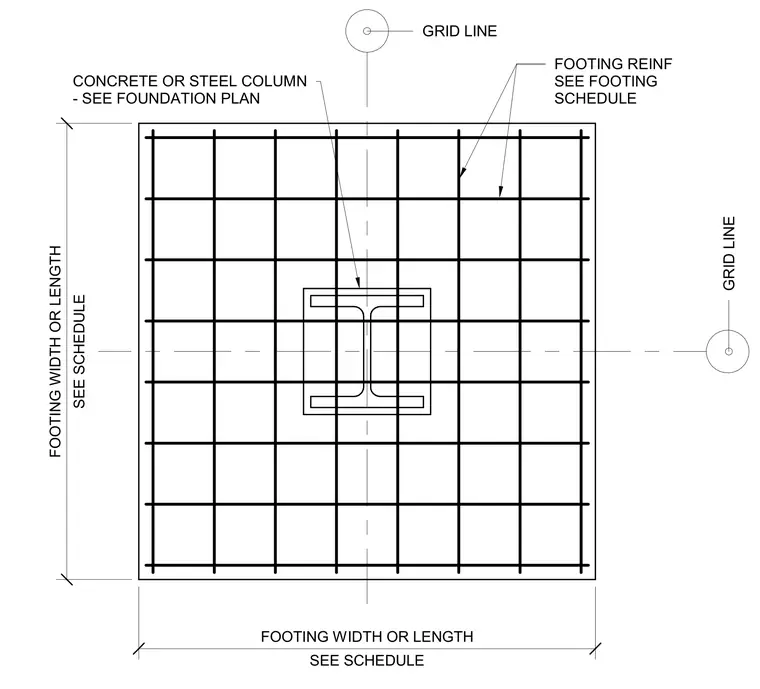

A square concrete footing is reinforced with a grid of reinforcing bars spanning in orthogonal directions. A concrete or steel column is centered on the footing at the intersection of structural grid lines. Footing dimensions and reinforcement sizes are determined per the structural schedule and foundation plan.
GRID LINE GRID LINE FOOTING REINF SEE FOOTING SCHEDULE CONCRETE OR STEEL COLUMN - SEE FOUNDATION PLAN SEE SCHEDULE FOOTING WIDTH OR LENGTH SEE SCHEDULE FOOTING WIDTH OR LENGTH
