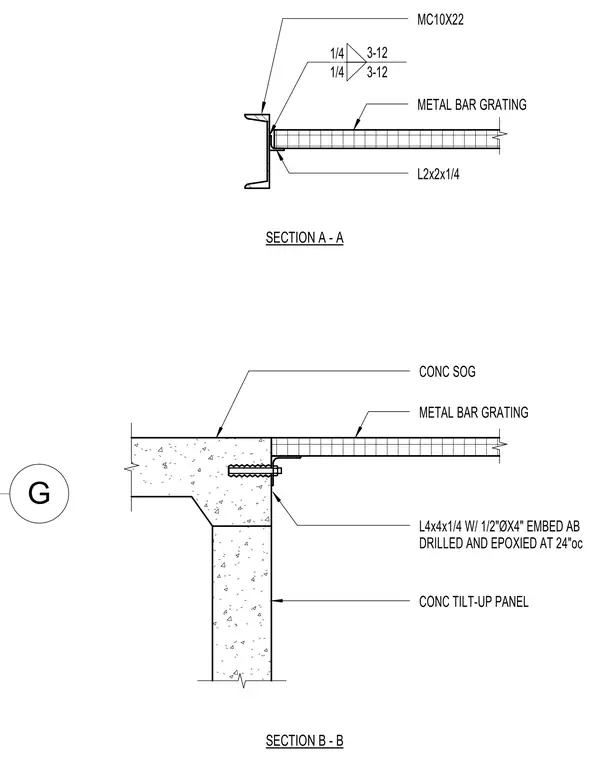

Metal bar grating bears on an L2x2x1/4 support angle welded with quarter-inch fillets at twelve-inch spacing to an MC10x22 channel. A second detail shows metal bar grating bearing on an L4x4x1/4 angle anchored to a concrete slab-on-grade and tilt-up panel with half-inch diameter by four-inch embedded anchor bolts drilled and epoxied at twenty-four inches on center.
L4x4x1/4 W/ 1/2"ØX4" EMBED AB DRILLED AND EPOXIED AT 24"oc SECTION A - A SECTION B - B METAL BAR GRATING CONC TILT-UP PANEL METAL BAR GRATING MC10X22 L2x2x1/4 1/4 3-12 1/4 3-12 CONC SOG G
