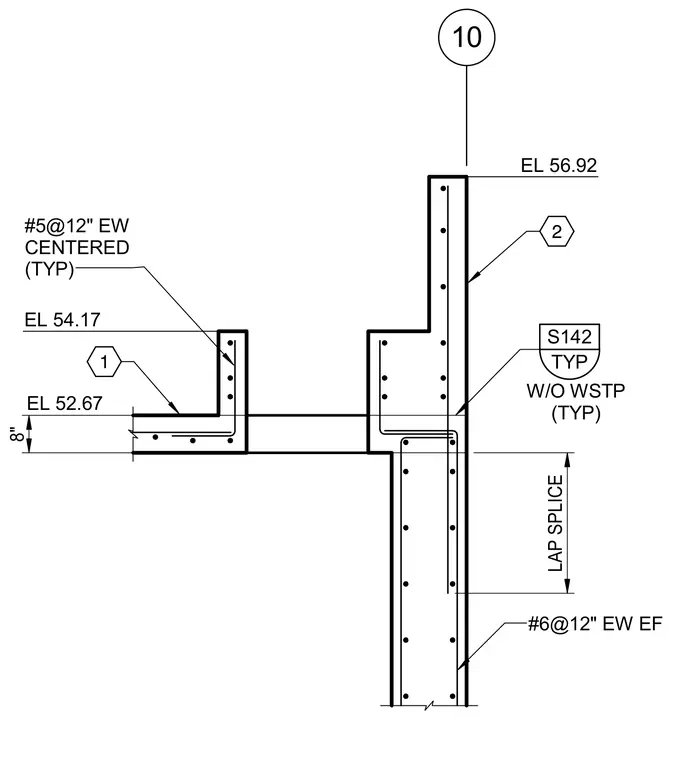

A reinforced concrete wall and slab junction features number five reinforcing bars at twelve inches on center centered typically, transitioning to number six bars at twelve inches on center each way each face in the lower wall. A lap splice is detailed without waterstop typically. Vertical and horizontal elevations are referenced at specific levels including fifty-two point six-seven, fifty-four point one-seven, and fifty-six point nine-two, with an eight inch slab thickness.
10 1 2 TYP S142 EL 56.92 LAP SPLICE W/O WSTP (TYP) EL 54.17 8" EL 52.67 #5@12" EW CENTERED (TYP) #6@12" EW EF
