Metal roof deck runs parallel to a gabled joist or wide-flange beam condition at the roof ridge. A twenty-gauge closure plate spans across the center line with a one-inch gap. Number twelve sheet metal screws secure the closure plate to the roof deck at parallel spacing per the structural schedule.

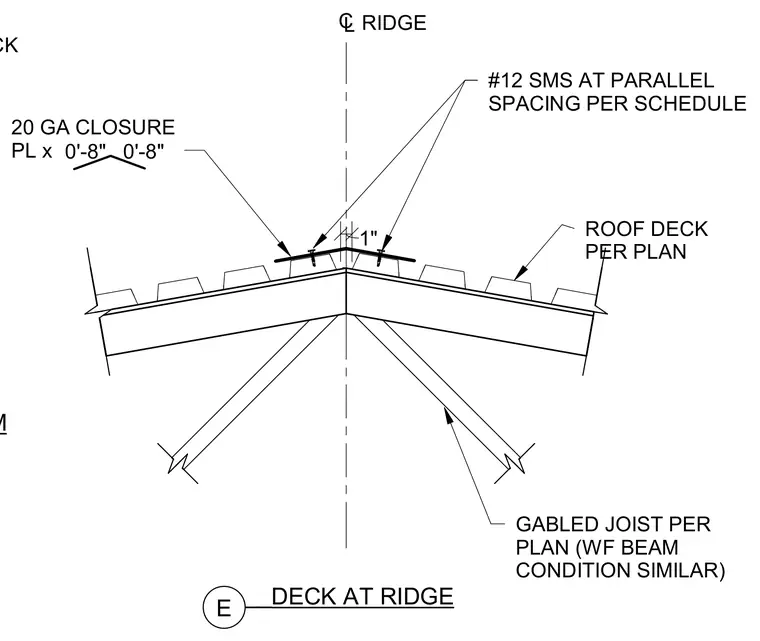

METAL DECK DECK PARALLEL TO DRAG BEAM 1" GABLED JOIST PER PLAN (WF BEAM CONDITION SIMILAR) ROOF DECK PER PLAN #12 SMS AT PARALLEL SPACING PER SCHEDULE C L RIDGE 20 GA CLOSURE PL x 0'-8" 0'-8" __ __ E DECK AT RIDGE
