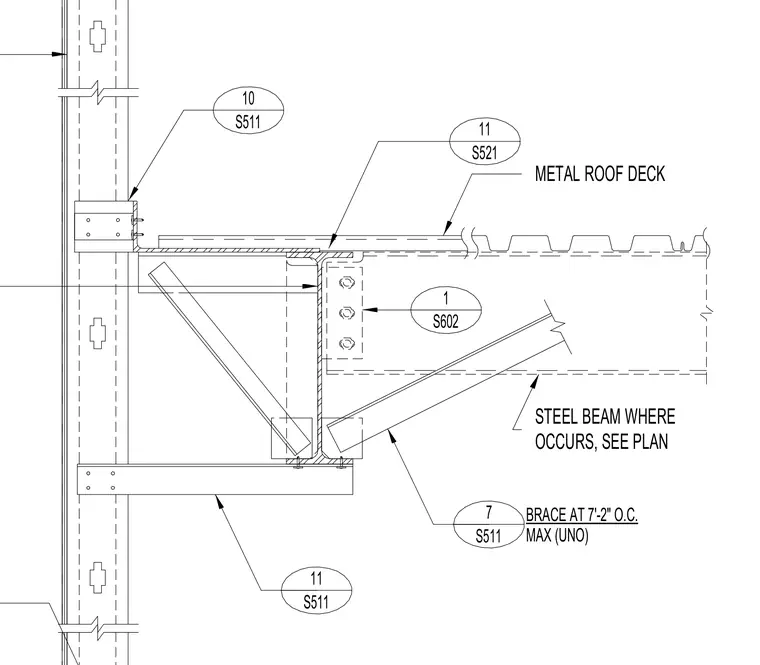

A structural steel beam connects to a column with a bolted shear tab and is laterally braced by an angle or channel brace spaced at a maximum of seven feet two inches on center unless noted otherwise. A metal roof deck bears directly on the top flange of the steel beam. Additional framing and connection details reference sheets S511, S521, and S602.
METAL ROOF DECK STEEL BEAM WHERE OCCURS, SEE PLAN 11 S521 7 S511 BRACE AT 7'-2" O.C. MAX (UNO) 1 S602 10 S511 11 S511
