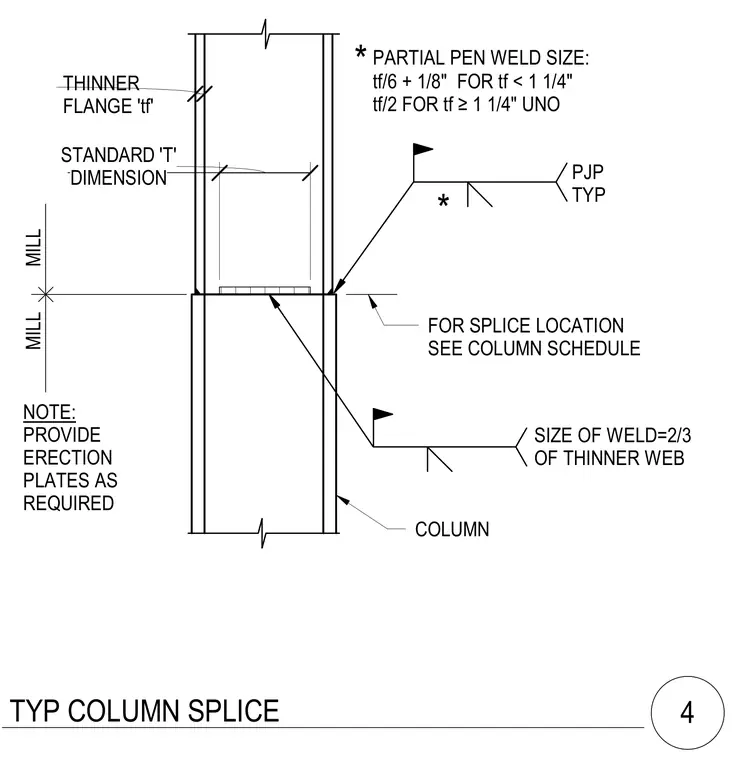

A typical steel column splice connection details the partial-joint-penetration groove weld requirements for the column flanges. The flange weld size is determined by the formula tf divided by 6 plus one-eighth inch for flanges under one and a quarter inches thick, and tf divided by 2 for flanges one and a quarter inches thick or greater, unless noted otherwise. The web weld size is specified as two-thirds of the thickness of the thinner web. Erection plates are provided as required at the splice location.
COLUMN MILL PARTIAL PEN WELD SIZE: tf/6 + 1/8" FOR tf < 1 1/4" tf/2 FOR tf ≥1 1/4" UNO NOTE: PROVIDE ERECTION PLATES AS REQUIRED FOR SPLICE LOCATION SEE COLUMN SCHEDULE SIZE OF WELD=2/3 OF THINNER WEB MILL PJP TYP * DIMENSION STANDARD 'T' * THINNER FLANGE 'tf' TYP COLUMN SPLICE 4
