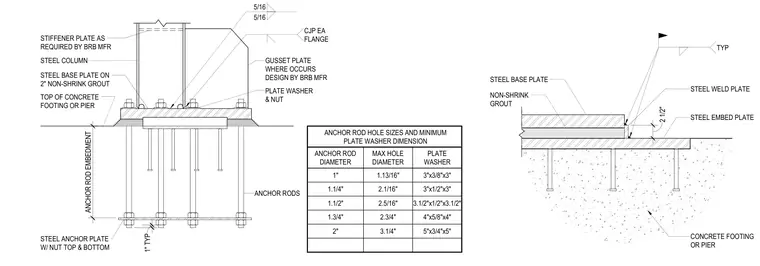

A steel column sits on a steel base plate supported by a two-inch layer of non-shrink grout over a concrete footing or pier. Anchor rods with top and bottom nuts secure the assembly through a steel anchor plate embedded below. A gusset plate and stiffener plates are provided as required by the brace manufacturer, connected with complete joint penetration welds at each flange and five-sixteenths fillet welds. A companion detail shows a steel base plate set flush with a steel weld plate and steel embed plate anchored into the concrete foundation. A reference table details anchor rod hole sizes and minimum plate washer dimensions for various rod diameters ranging from one inch to two inches.
STEEL COLUMN STEEL BASE PLATE ON 2" NON-SHRINK GROUT TOP OF CONCRETE FOOTING OR PIER STEEL ANCHOR PLATE W/ NUT TOP & BOTTOM ANCHOR RODS 1" ANCHOR ROD DIAMETER 1.13/16" MAX HOLE DIAMETER 3"x3/8"x3" PLATE WASHER 1.1/4" 2.1/16" 3"x1/2"x3" 1.1/2" 2.5/16" 3.1/2"x1/2"x3.1/2" 1.3/4" 2.3/4" 4"x5/8"x4" 2" 3.1/4" 5"x3/4"x5" ANCHOR ROD HOLE SIZES AND MINIMUM PLATE WASHER DIMENSION PLATE WASHER & NUT ANCHOR ROD EMBEDMENT 1" TYP GUSSET PLATE WHERE OCCURS DESIGN BY BRB MFR 5/16 5/16 CJP EA FLANGE STIFFENER PLATE AS REQUIRED BY BRB MFR STEEL BASE PLATE NON-SHRINK GROUT STEEL WELD PLATE STEEL EMBED PLATE CONCRETE FOOTING OR PIER TYP 2 1/2"
