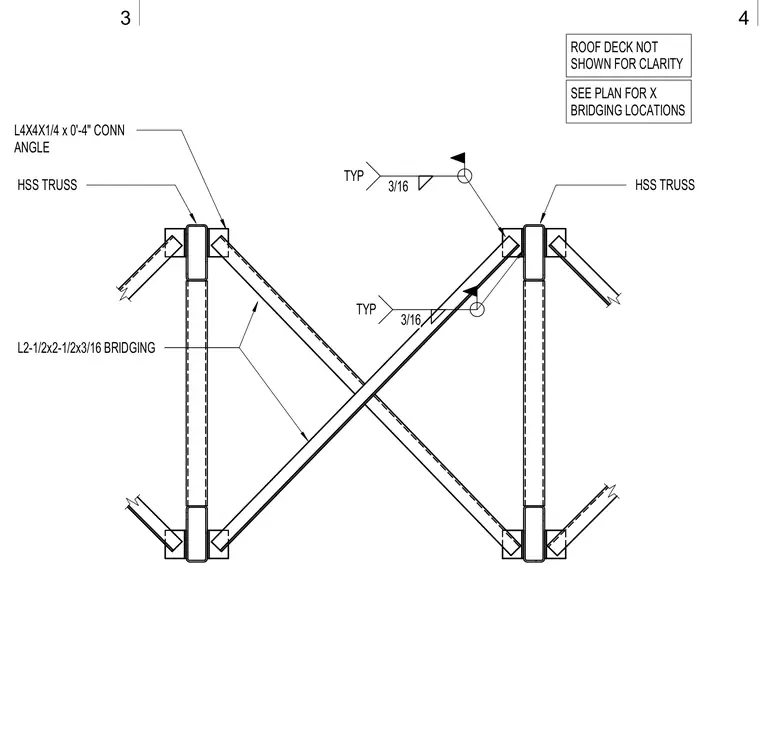

Hollow structural section roof trusses are stabilized laterally using L2-1/2x2-1/2x3/16 angle cross-bridging members. The bridging angles connect to the vertical HSS trusses via L4x4x1/4 by zero-foot-four-inch connection angles welded with three-sixteenth-inch typical fillet welds. The roof deck is omitted for clarity, and exact cross-bridging locations are coordinated per the structural framing plan.
HSS TRUSS ROOF DECK NOT SHOWN FOR CLARITY L2-1/2x2-1/2x3/16 BRIDGING HSS TRUSS L4X4X1/4 x 0'-4" CONN ANGLE 3/16 TYP 3/16 TYP SEE PLAN FOR X BRIDGING LOCATIONS 4 3
