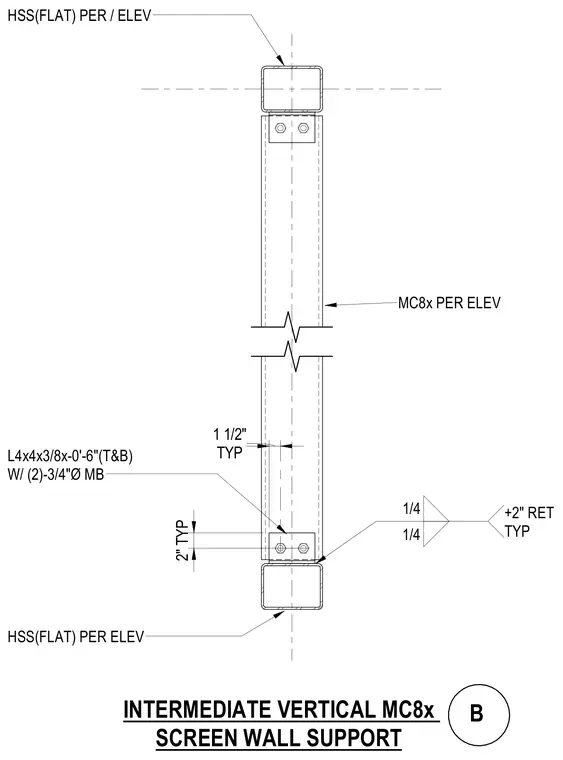

An intermediate vertical MC8x channel member spans between hollow structural section supports located at the top and bottom. The vertical channel connects using L4x4x3/8 angles attached at the top and bottom with two three-quarter-inch diameter machine bolts each. One-quarter-inch fillet welds secure the connection assembly with a two-inch return typical. The hollow structural sections are sized per elevation.
MC8x PER ELEV HSS(FLAT) PER / ELEV HSS(FLAT) PER ELEV 1/4 1/4 +2" RET TYP L4x4x3/8x-0'-6"(T&B) W/ (2)-3/4"Ø MB 2" TYP TYP 1 1/2" INTERMEDIATE VERTICAL MC8x SCREEN WALL SUPPORT B
