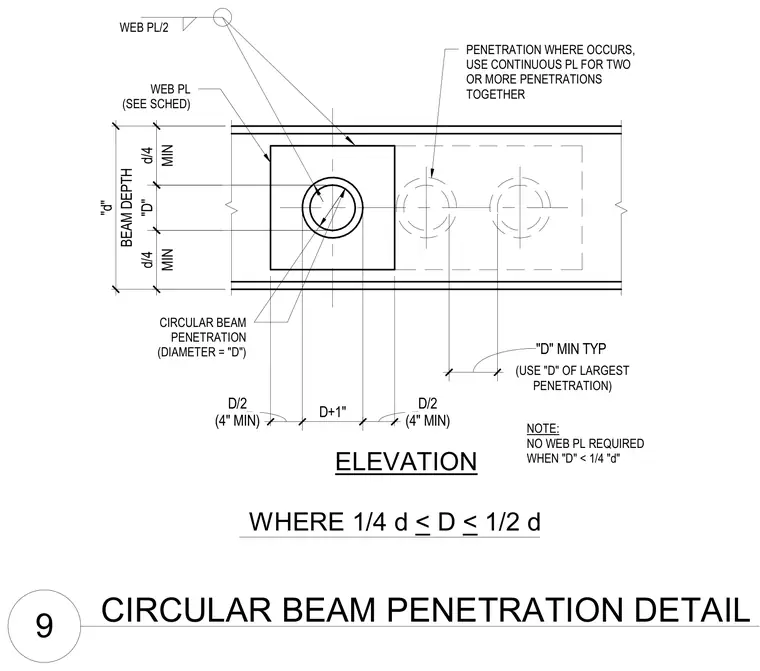

Geometric criteria and reinforcement requirements govern circular penetrations through a steel beam web. The hole diameter 'D' is restricted between one-quarter and one-half of the total beam depth 'd', with a web plate required per schedule when 'D' exceeds one-quarter of 'd'. Minimum edge distances and clear spacings between adjacent penetrations are specified, including a requirement for continuous web plates when multiple penetrations occur together. No web plate is required when the penetration diameter is less than one-quarter of the beam depth.
(USE "D" OF LARGEST PENETRATION) WHERE 1/4 d < D < 1/2 d ELEVATION NOTE: NO WEB PL REQUIRED WHEN "D" < 1/4 "d" PENETRATION WHERE OCCURS, USE CONTINUOUS PL FOR TWO OR MORE PENETRATIONS TOGETHER CIRCULAR BEAM PENETRATION (DIAMETER = "D") WEB PL (SEE SCHED) BEAM DEPTH "d" MIN d/4 MIN d/4 "D" WEB PL/2 "D" MIN TYP (4" MIN) D/2 D+1" (4" MIN) D/2 9 CIRCULAR BEAM PENETRATION DETAIL
