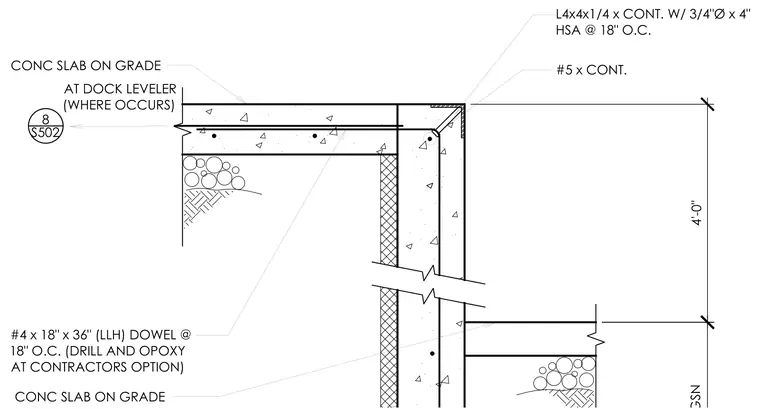

A concrete slab on grade intersects a foundation wall at a dock leveler location. The concrete slab features continuous number 5 reinforcing bars and number 4 dowels measuring eighteen by thirty-six inches spaced at eighteen inches on center, with drilling and epoxy permitted at the contractor's option. A continuous L4x4x1/4 angle with three-quarter-inch diameter by four-inch heavy stud anchors at eighteen inches on center is embedded at the slab edge corner. The assembly interfaces with insulation along the foundation wall extending down to the footing.
4'-0" #4 x 18" x 36" (LLH) DOWEL @ 18" O.C. (DRILL AND OPOXY AT CONTRACTORS OPTION) CONC SLAB ON GRADE #5 x CONT. CONC SLAB ON GRADE AT DOCK LEVELER (WHERE OCCURS) 8 S502 L4x4x1/4 x CONT. W/ 3/4"Ø x 4" HSA @ 18" O.C. 4 2 A A 883% 222222 A 4 A A <7. *7
