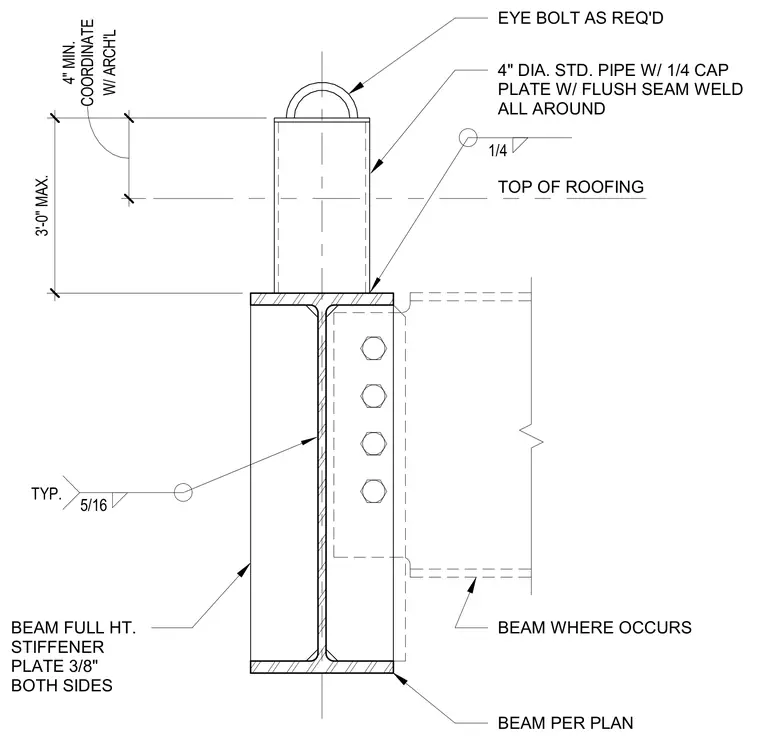

A four-inch diameter standard steel pipe post with a one-quarter inch cap plate and flush seam weld all around is mounted to a structural steel beam supporting an eye bolt as required. The structural beam features full-height three-eighths inch stiffener plates on both sides welded with five-sixteenths inch typical fillet welds. The post extends above the top of the roofing by a coordinated minimum of four inches and a maximum of three feet zero inches. The support connects back to a structural beam per plan using a bolted connection.
BEAM FULL HT. STIFFENER PLATE 3/8" BOTH SIDES 1/4 3'-0" MAX. W/ ARCH'L 4" MIN. COORDINATE 5/16 TYP. 4" DIA. STD. PIPE W/ 1/4 CAP PLATE W/ FLUSH SEAM WELD ALL AROUND EYE BOLT AS REQ'D TOP OF ROOFING BEAM WHERE OCCURS BEAM PER PLAN
