A steel column receives a beam moment connection reinforced with doubler plates welded to the column web. Continuity plates align with the beam flanges, and stiffener plates provide additional web reinforcement. Groove welds conform to AWS D1.8 Clause 4.3 requirements, with a minimum fillet weld size of three-sixteenths of an inch specified at plate edges. Plate thicknesses are proportioned using the doubler plate thickness variable.

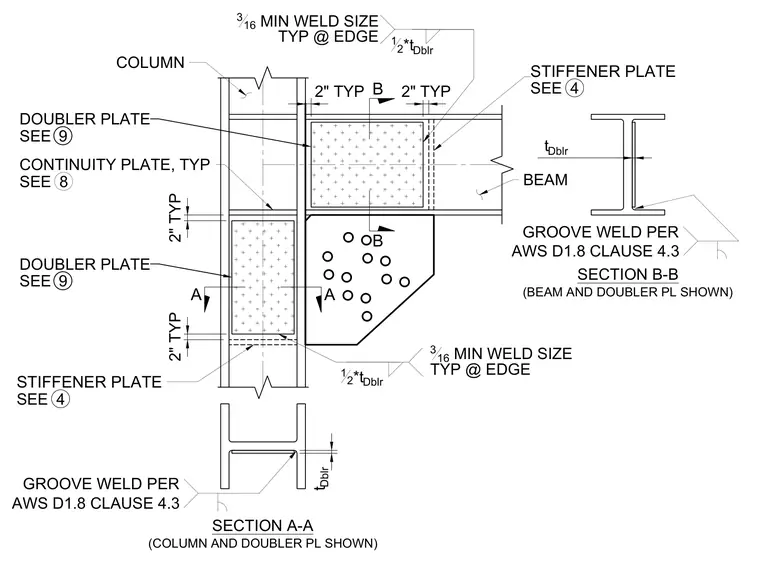

2" TYP 9 SEE BEAM DOUBLER PLATE TYP @ EDGE 12 *t Dblr 316 MIN WELD SIZE GROOVE WELD PER AWS D1.8 CLAUSE 4.3 t Dblr 2" TYP CONTINUITY PLATE, TYP COLUMN 8 SEE 2" TYP 2" TYP t Dblr B B A A SECTION A-A (COLUMN AND DOUBLER PL SHOWN) SECTION B-B (BEAM AND DOUBLER PL SHOWN) 9 SEE DOUBLER PLATE GROOVE WELD PER AWS D1.8 CLAUSE 4.3 12 *t Dblr TYP @ EDGE 316 MIN WELD SIZE STIFFENER PLATE 4 SEE STIFFENER PLATE 4 SEE
