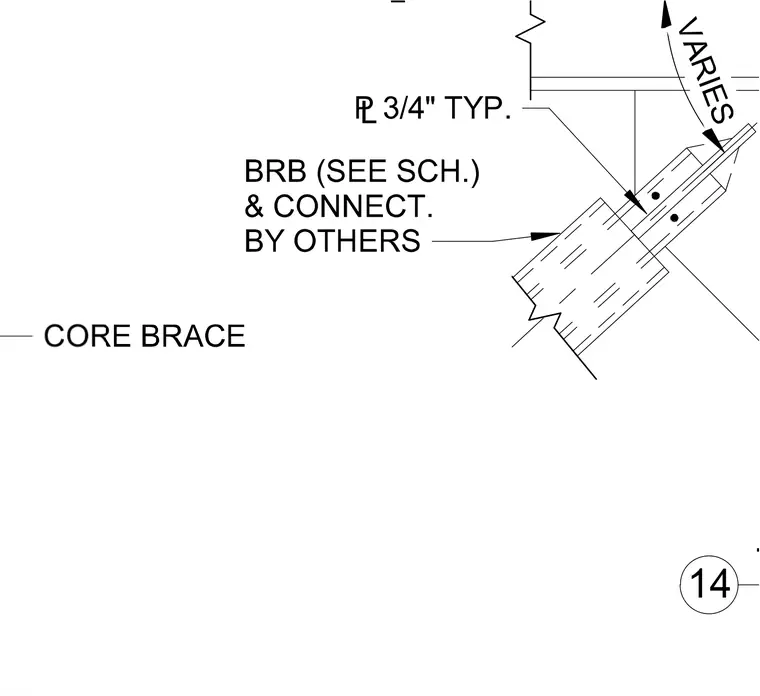

A buckling-restrained brace connects to a structural assembly with a three-quarter-inch plate typically provided at the bottom condition. The buckling-restrained brace is sized per schedule with its connection detailed by others. A dimensioned gap labeled varies allows for installation tolerances and movement.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
