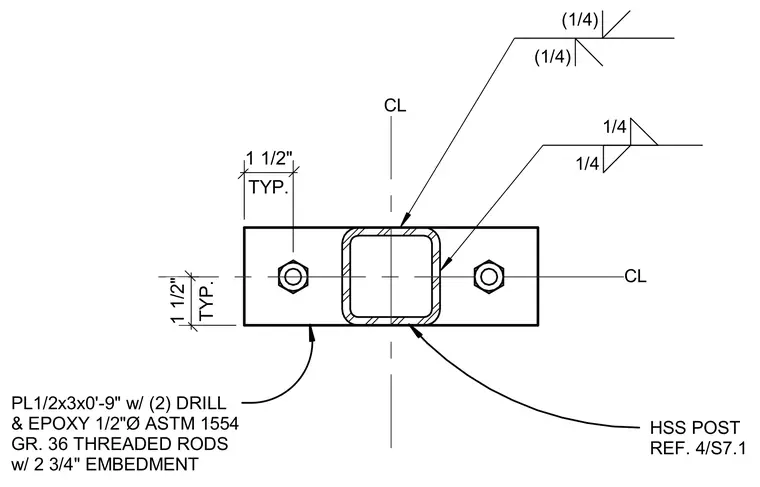

A hollow structural section post is welded to a 1/2-inch thick by 3-inch wide by 9-inch long steel plate with 1/4-inch fillet welds. The base plate is anchored using two 1/2-inch diameter ASTM F1554 Grade 36 threaded rods installed with drill and epoxy adhesive, set at a 2-3/4 inch embedment depth. The anchor rods are positioned with 1-1/2 inch typical edge clearances from the plate boundaries.
TYP. 1 1/2" TYP. 1 1/2" HSS POST REF. 4/S7.1 PL1/2x3x0'-9" w/ (2) DRILL & EPOXY 1/2"Ø ASTM 1554 GR. 36 THREADED RODS w/ 2 3/4" EMBEDMENT 1/4 1/4 (1/4) (1/4) CL CL
