A structural diagonal brace consisting of a 3x3x1/4-inch angle connects from each outrigger to the top flange of the nearest steel beam or top chord of the steel joist, skewed as required. A 1/4-inch by 6-inch by 6-inch weld plate is positioned at the diagonal brace. A 5/16-inch by 4-inch bent plate is centered on the plate web, secured with 3/16-inch fillet welds. The contractor may optionally provide the connection using two 7/8-inch diameter A325 bolts instead of the field weld.

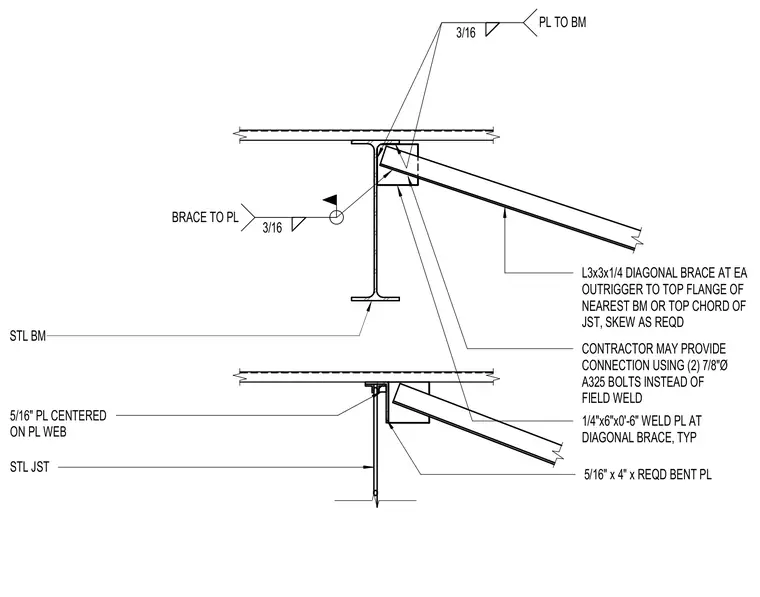

1/4"x6"x0'-6" WELD PL AT DIAGONAL BRACE, TYP L3x3x1/4 DIAGONAL BRACE AT EA OUTRIGGER TO TOP FLANGE OF NEAREST BM OR TOP CHORD OF JST, SKEW AS REQD STL BM CONTRACTOR MAY PROVIDE CONNECTION USING (2) 7/8"Ø A325 BOLTS INSTEAD OF FIELD WELD 3/16 PL TO BM 3/16 BRACE TO PL STL JST 5/16" PL CENTERED ON PL WEB 5/16" x 4" x REQD BENT PL
