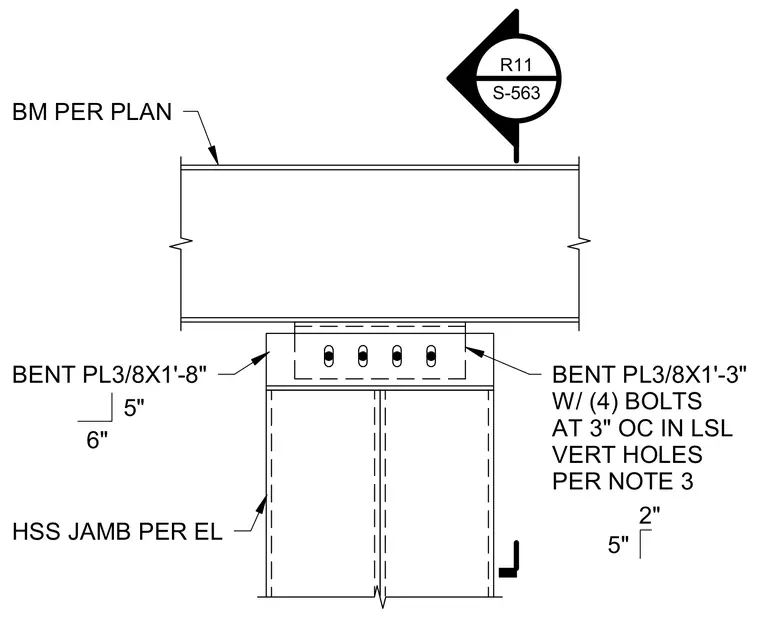

A structural beam connects to an HSS jamb per elevations using a 3/8-inch by 1-foot-8-inch bent plate and a 3/8-inch by 1-foot-3-inch bent plate. Four bolts spaced at 3 inches on center secure the connection through vertical holes in the LSL per note 3.
R11 S-563 HSS JAMB PER EL BENT PL3/8X1'-8" 5" 6" BENT PL3/8X1'-3" W/ (4) BOLTS AT 3" OC IN LSL VERT HOLES PER NOTE 3 5" 2" BM PER PLAN
