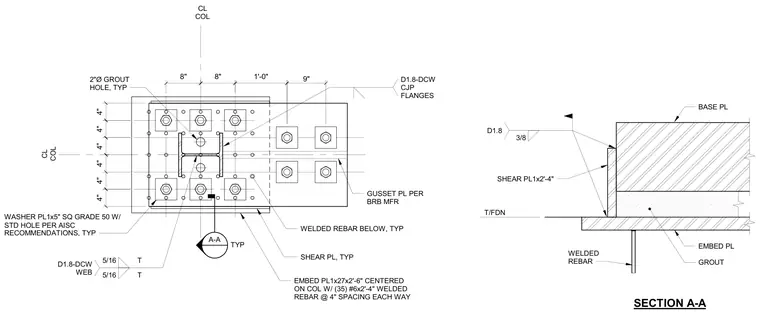

A base plate and gusset plate assembly connects to a concrete foundation via a large embed plate measuring 1-inch by 27-inch by 2 feet 6 inches, centered on the column. Thirty-five number 6 rebar measuring 2 feet 4 inches are welded to the embed plate below at 4-inch spacing each way. A shear plate measuring 1 inch by 2 feet 4 inches is welded with 3/8-inch D1.8 welds. The column flanges feature complete joint penetration welds per D1.8-DCW, and the web is welded with 5/16-inch fillets. Square washer plates measuring 1-inch by 5-inch in Grade 50 steel with standard holes are provided per AISC recommendations. A typical 2-inch diameter grout hole and grout layer are positioned beneath the base plate.
T/FDN A-A 5/16 T 5/16 T D1.8-DCW WEB D1.8-DCW CJP FLANGES WASHER PL1x5" SQ GRADE 50 W/ STD HOLE PER AISC RECOMMENDATIONS, TYP EMBED PL1x27x2'-6" CENTERED ON COL W/ (35) #6x2'-4" WELDED REBAR @ 4" SPACING EACH WAY CL COL WELDED REBAR BELOW, TYP 2"Ø GROUT HOLE, TYP CL COL WELDED REBAR SHEAR PL1x2'-4" 3/8 D1.8 GROUT SECTION A-A EMBED PL BASE PL GUSSET PL PER BRB MFR TYP 8" 8" 1'-0" 9" SHEAR PL, TYP 4" 4" 4" 4" 4" 4"
