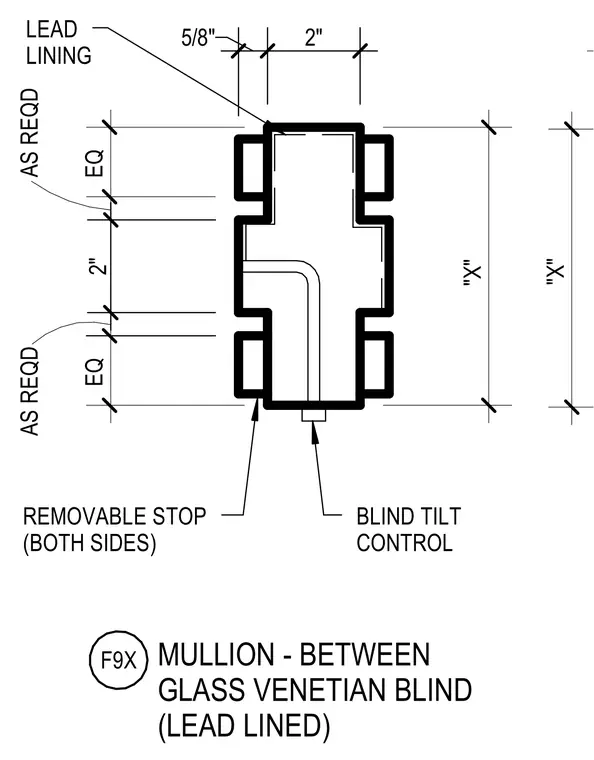

A lead-lined mullion assembly designed for between-glass Venetian blind integration. The central mullion profile features internal lead lining and an integrated blind tilt control mechanism. Removable stops are provided on both sides of the assembly for maintenance and installation access. Dimensions indicate a 2-inch profile width with 5/8-inch offset dimensions and variable spacing as required.
2" 5/8" 2" MULLION - BETWEEN GLASS VENETIAN BLIND (LEAD LINED) F9X REMOVABLE STOP (BOTH SIDES) BLIND TILT CONTROL AS REQD AS REQD EQ EQ LEAD LINING "X" "X" "X"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
