Structural · S-MKSKK

Steel Beam and Metal Roof Deck Bearing at Tilt-Up Concrete Wall

Materials

Concrete Steel Metal (misc.)

Elements

Beams Walls Roofs Decks Anchors / Embeds

Connections

Embed Plate

About this detail

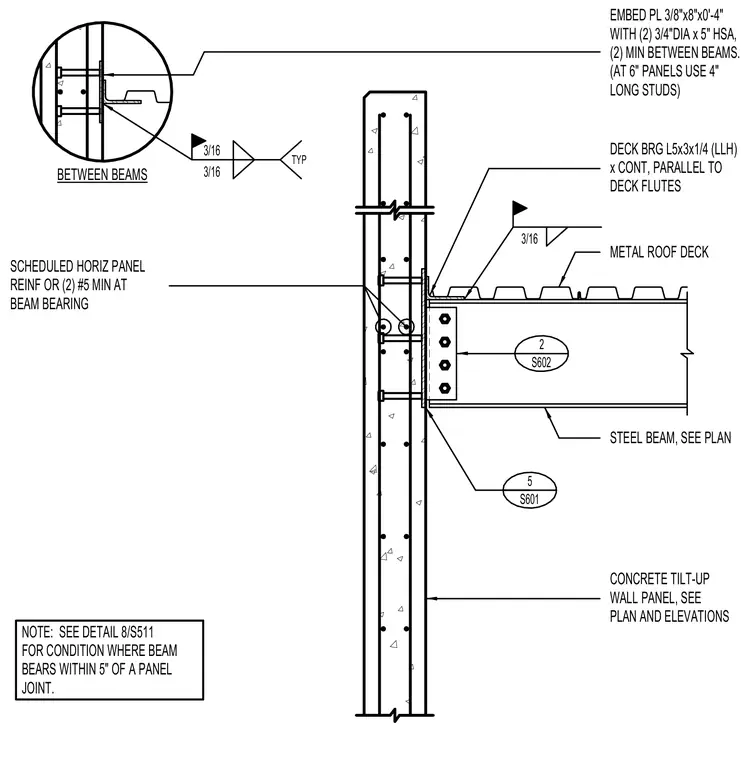

A steel roof beam frames into a concrete tilt-up wall panel using a shear tab connection welded to a 3/8-inch by 8-inch by 4-inch embed plate equipped with two 3/4-inch diameter by 5-inch headed stud anchors. For six-inch thick panels, four-inch long studs are specified. A continuous L5x3x1/4 deck bearing angle runs parallel to the metal roof deck flutes. The concrete wall panel incorporates scheduled horizontal panel reinforcement or a minimum of two number five bars at the beam bearing location. Three-sixteenth-inch fillet welds secure the connection components, with a note requiring two number five minimum bars between beams and specific detailing when the beam bears within five inches of a panel joint.
