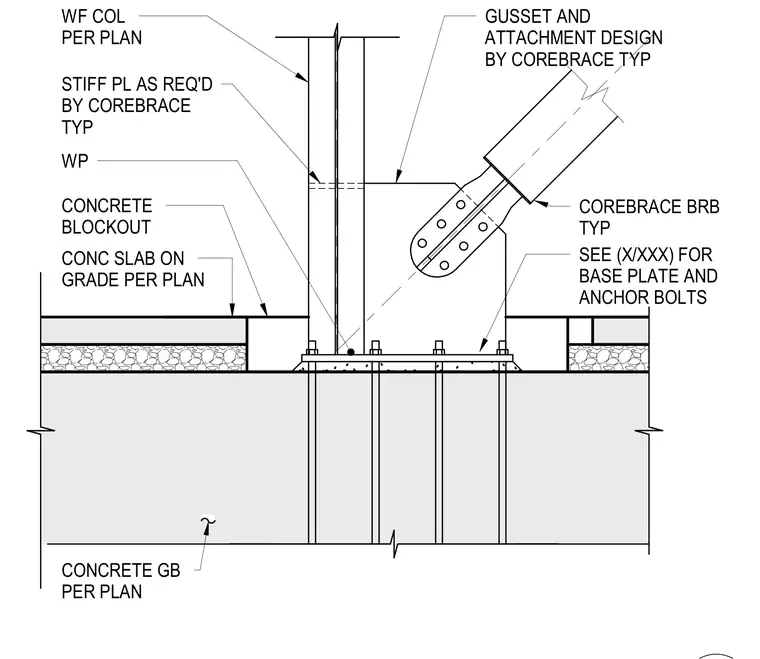

A CoreBrace buckling restrained brace connects with a bolted lug to a gusset plate welded to a wide-flange steel column and base plate assembly. The wide-flange column features stiffener plates as required by the manufacturer and is anchored to a concrete grade beam per plan. A concrete blockout surrounds the column base within the concrete slab on grade. Base plate and anchor bolt details are referenced separately on the structural drawings.
COREBRACE BRB TYP SEE (X/XXX) FOR BASE PLATE AND ANCHOR BOLTS STIFF PL AS REQ'D BY COREBRACE TYP GUSSET AND ATTACHMENT DESIGN BY COREBRACE TYP CONCRETE BLOCKOUT CONC SLAB ON GRADE PER PLAN WF COL PER PLAN WP CONCRETE GB PER PLAN
