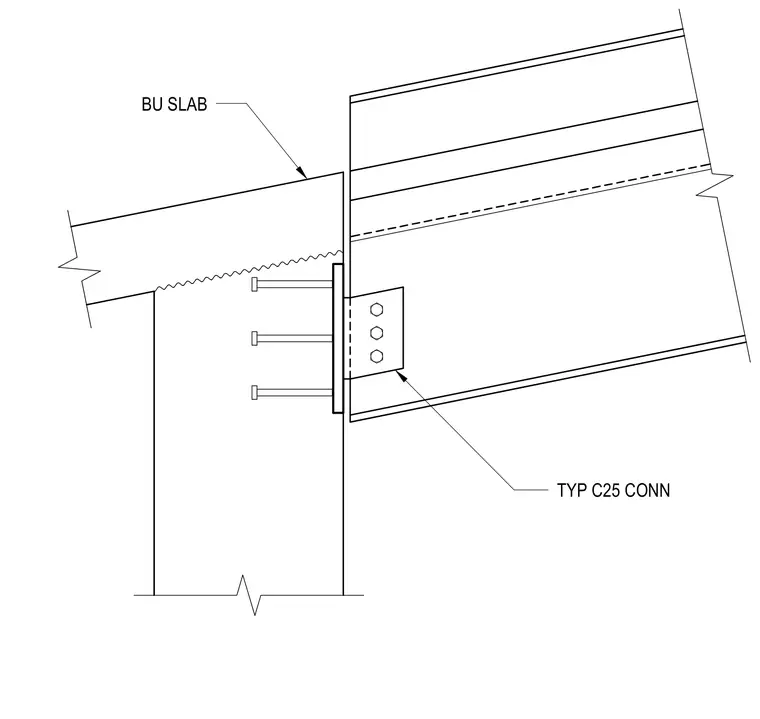

A typical C25 connection joins a built-up slab to a structural framing member. The built-up slab bears against the structural element with embedded headed shear studs anchoring it into the concrete. A bolted shear connection tab with three fasteners secures the framing member.
