Structural · S-MKJ8Y

Panel Holdown Connection

Materials

Concrete Steel Masonry / CMU

Elements

Anchors / Embeds Connections / Plates Reinforcing

Connections

Rebar Splice / Development

About this detail

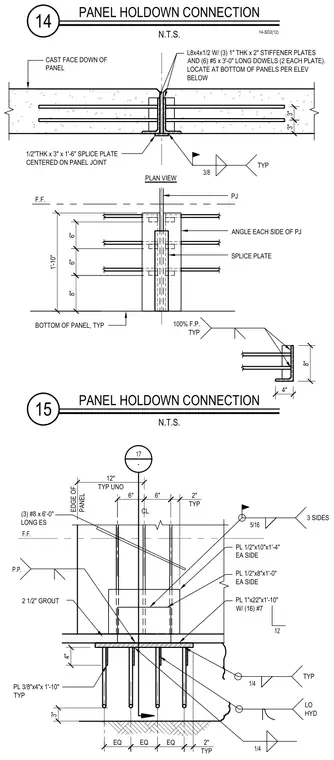

Precast concrete panel holdown connections occur at a panel joint and the bottom of the panel. The plan view features an L8x4x1/2 angle with three 1-inch-thick by 2-inch stiffener plates and six #5 by 3-foot-0-inch long dowels with two each plate, centered on a 1/2-inch-thick by 3-inch by 1-foot-6-inch splice plate. The elevation view details the base plate assembly anchored with 2-1/2 inches of grout, a 1-inch by 22-inch by 1-foot-10-inch plate with sixteen #7 bars, side reinforcing plates measuring 1/2 inch by 10 inches by 1-foot-4 inches and 1/2 inch by 8 inches by 1-foot-0 inch each side, and three #8 by 6-foot-0-inch long dowels each side. Fillet welds of 3/8-inch, 5/16-inch on three sides, and 1/4-inch typical are specified throughout the steel assembly.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
