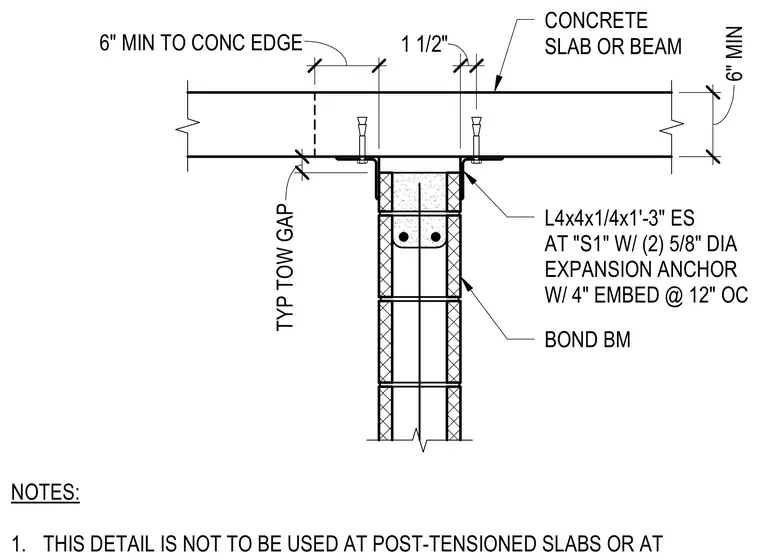

An interior masonry wall terminates below a concrete slab or beam, anchored by structural steel angles measuring four inches by four inches by one-quarter inch by one foot three inches, each side. Two five-eighths-inch diameter expansion anchors with a four-inch embedment secure each angle to the overhead concrete at twelve inches on center. A bond beam forms the top course of the masonry wall. A typical top of wall gap is maintained between the wall and the underside of the concrete element, with a minimum six-inch distance to the concrete edge. Note that this detail is prohibited at post-tensioned slabs.
CONCRETE SLAB OR BEAM L4x4x1/4x1'-3" ES AT "S1" W/ (2) 5/8" DIA EXPANSION ANCHOR W/ 4" EMBED @ 12" OC BOND BM 1 1/2" TYP TOW GAP 6" 6" MIN 6" 6" MIN TO CONC EDGE 1 1/2" NOTES: 1. THIS DETAIL IS NOT TO BE USED AT POST-TENSIONED SLABS OR AT
