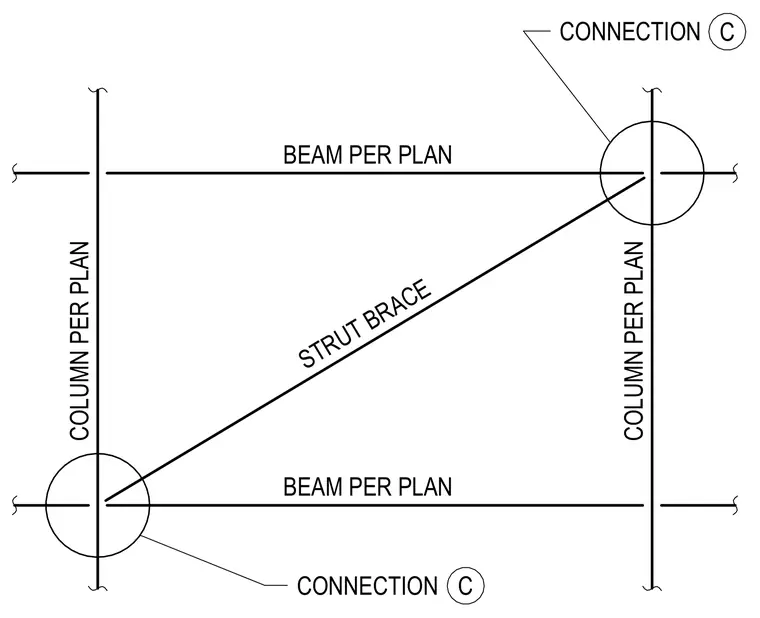

A diagonal strut brace spans between structural columns and beams sized per plan. Specific connection details at each end of the brace are referenced by connection callouts. The framing members intersect at designated node points to provide lateral stability.
COLUMN PER PLAN COLUMN PER PLAN CONNECTION BEAM PER PLAN STRUT BRACE BEAM PER PLAN CONNECTION C C
