Structural · S-MKB5G

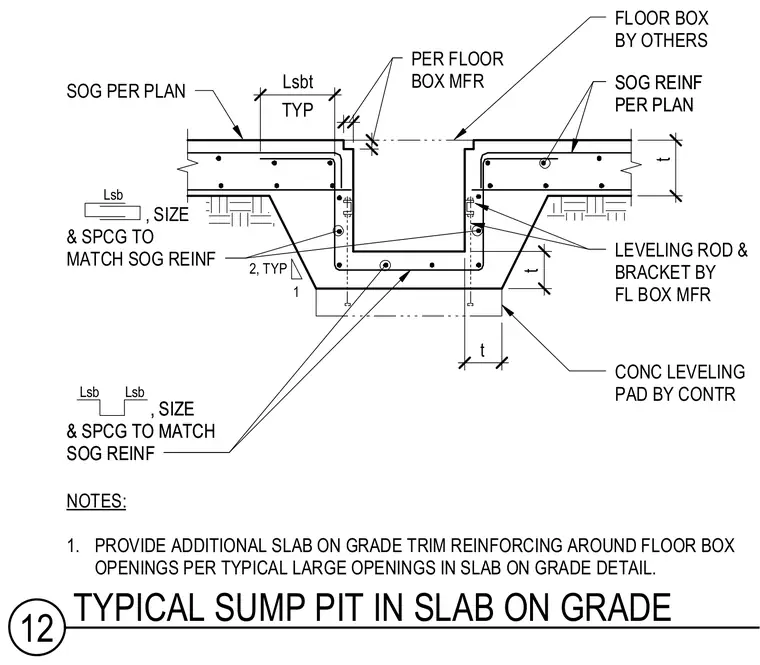

Typical Sump Pit in Slab on Grade

Materials

Elements

Floors / Slabs Reinforcing Roof / Floor Openings

About this detail

A concrete sump pit is cast monolithically within a slab on grade, supported on a concrete leveling pad provided by the contractor. Leveling rods and brackets supplied by the floor box manufacturer secure the recessed pit assembly. Slab on grade reinforcing continues around the perimeter, matched in size and spacing per structural plans. Additional trim reinforcing is provided around the opening per standard floor box detailing requirements.
