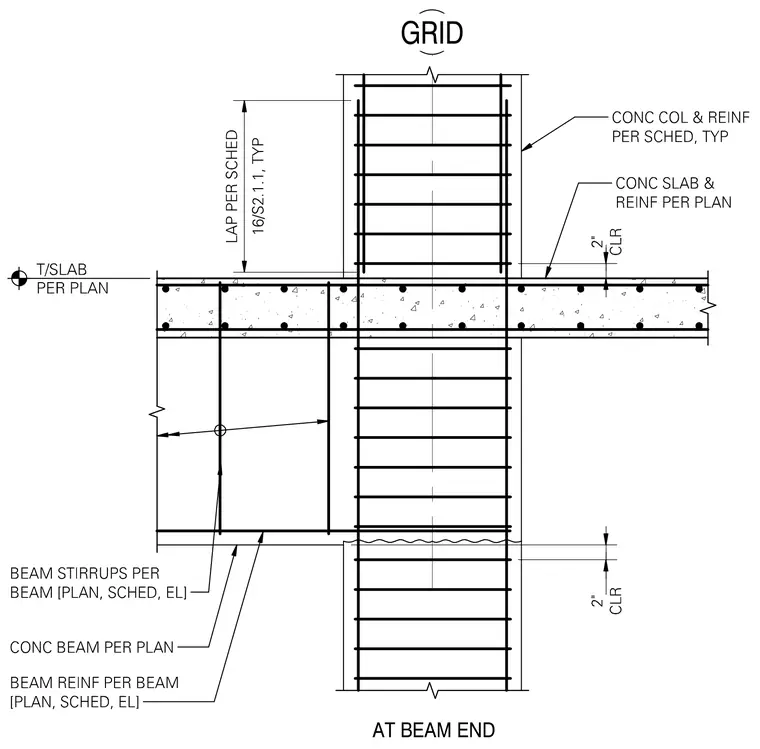

A reinforced concrete column intersects with a concrete slab and concrete beam at a grid line. The concrete column and its reinforcement are detailed per schedule with typical lap splices dimensioned above the slab. The concrete slab and its reinforcement are provided per plan, maintaining a two-inch clearance. A concrete beam frames into the column with stirrups and reinforcement sized per plan, schedule, or elevation. The top of the slab is established at the elevation indicated per plan.
