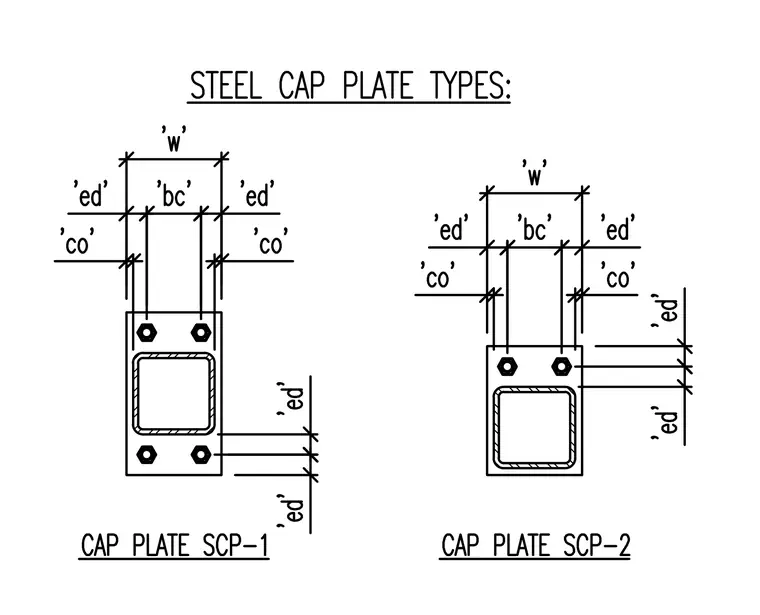

Steel cap plates SCP-1 and SCP-2 are welded to the top of square hollow structural section columns to provide a bolted connection interface. Each detail details the edge distances, bolt spacing dimensions, and clear overhang dimensions for the fastener layout.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
