Typical Bracing Beam Connection Type SC-2

Materials

Steel

Elements

Beams Bracing Connections / Plates

Connections

Bolted Connection

About this detail

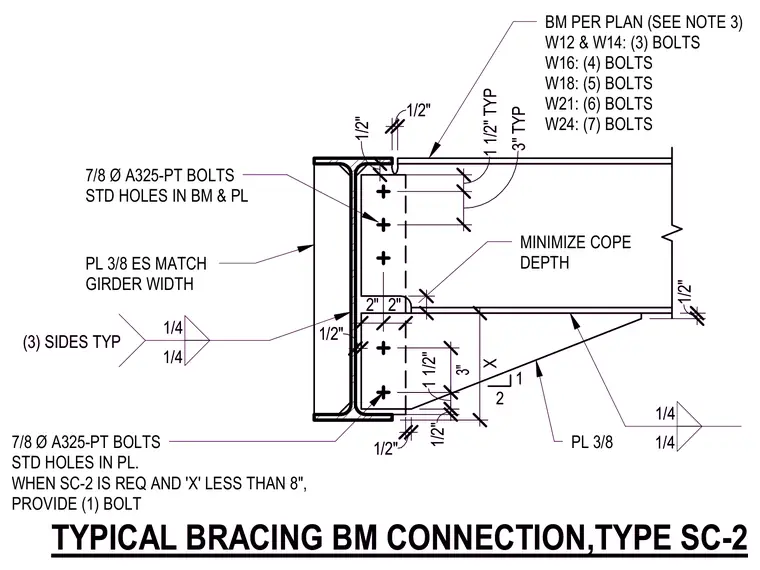

This structural steel connection joins a framing beam per plan to a supporting girder using a three-eighths-inch plate matching the girder width on each side. Seven-eighths-inch diameter A325-PT bolts with standard holes secure the beam web and plate, with bolt counts varying from three to seven depending on the beam depth ranging from W12 to W24 sizes. A minimized cope depth is provided at the top flange, while a three-eighths-inch gusset plate welded with quarter-inch fillet welds on three sides reinforces the bottom flange. When dimension X is less than eight inches, a single bolt is provided in the lower connection plate.
