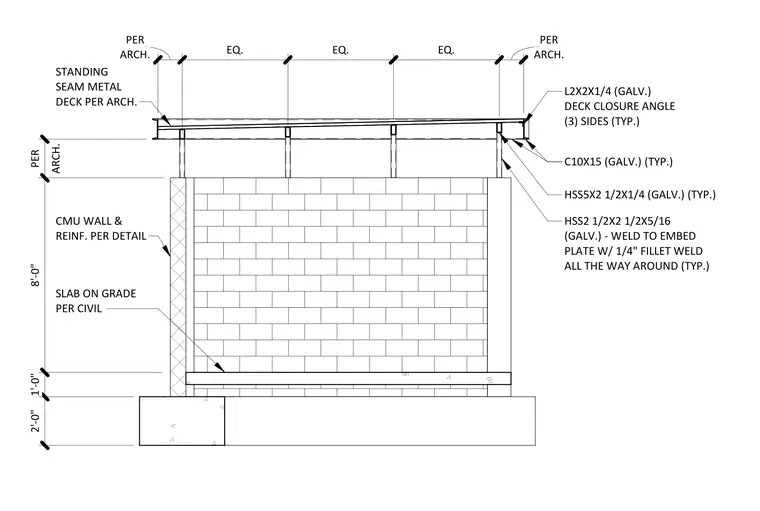

A standing seam metal deck rests on C10x15 galvanized channels. A 2x2x1/4 inch galvanized deck closure angle finishes the perimeter on three sides. HSS 5x2 1/2x1/4 inch galvanized members support the roof structure and are carried by HSS 2 1/2x2 1/2x5/16 inch galvanized posts. These posts attach to the CMU wall via embed plates with a 1/4 inch fillet weld applied all the way around. The CMU wall and slab on grade conform to the architectural and civil drawings, respectively.
Text on the drawing
ARCH. PER EQ. EQ. EQ. ARCH. PER ARCH. PER 8'-0" 1'-0" 2'-0" C10X15 (GALV.) (TYP.) L2X2X1/4 (GALV.) DECK CLOSURE ANGLE (3) SIDES (TYP.) HSS5X2 1/2X1/4 (GALV.) (TYP.) HSS2 1/2X2 1/2X5/16 (GALV.) - WELD TO EMBED PLATE W/ 1/4" FILLET WELD ALL THE WAY AROUND (TYP.) CMU WALL & REINF. PER DETAIL SLAB ON GRADE PER CIVIL STANDING SEAM METAL DECK PER ARCH.
