Steel deck bears across structural steel edge beams with configuration options for parallel and perpendicular orientations. Twelve-gauge continuous bent plates are welded to the edge beam supporting the steel deck, with three-quarter-inch diameter fasteners spaced at twelve inches on center. Additional support uses an L4x4x1/4 angle spaced at eight feet maximum per detail 9D. Sixteen-gauge continuous bent edge plates finish the perimeter for perpendicular deck conditions.

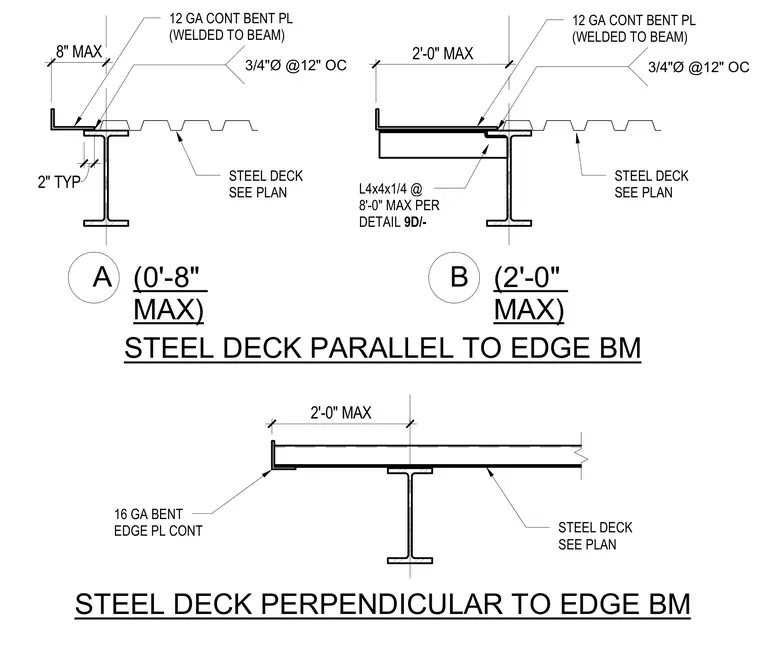

STEEL DECK PERPENDICULAR TO EDGE BM STEEL DECK PARALLEL TO EDGE BM 16 GA BENT EDGE PL CONT STEEL DECK SEE PLAN STEEL DECK SEE PLAN 12 GA CONT BENT PL (WELDED TO BEAM) 8" MAX 2'-0" MAX 3/4"Ø @12" OC STEEL DECK SEE PLAN 12 GA CONT BENT PL (WELDED TO BEAM) 2'-0" MAX L4x4x1/4 @ 8'-0" MAX PER DETAIL 9D/- 3/4"Ø @12" OC (0'-8" MAX) A (2'-0" MAX) B 2" TYP
