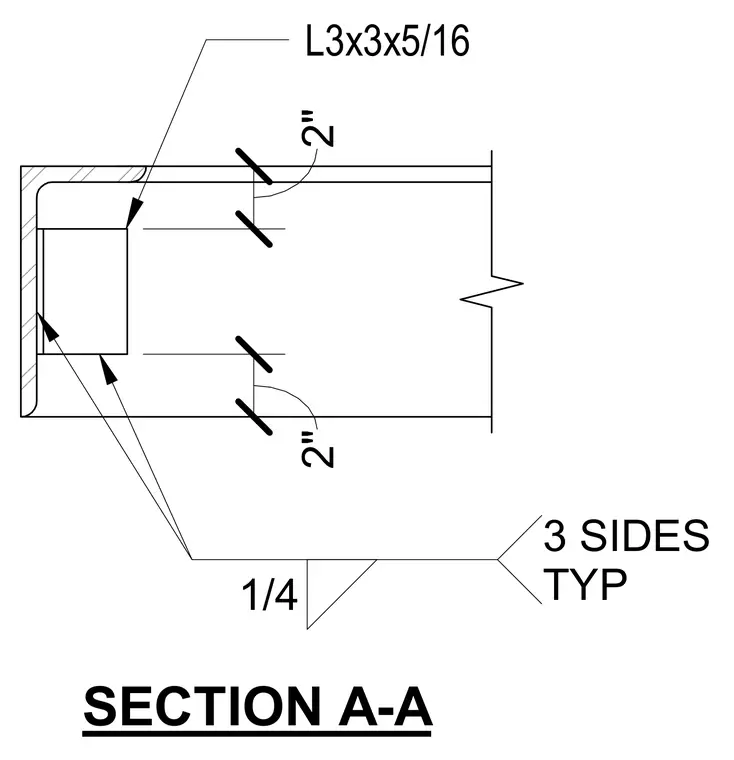

An L3x3x5/16 structural steel angle is mounted at a concrete masonry unit corner and secured with one-quarter-inch fillet welds on three sides typically. Two-inch dimensions establish weld or clearance placement along the connection.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
