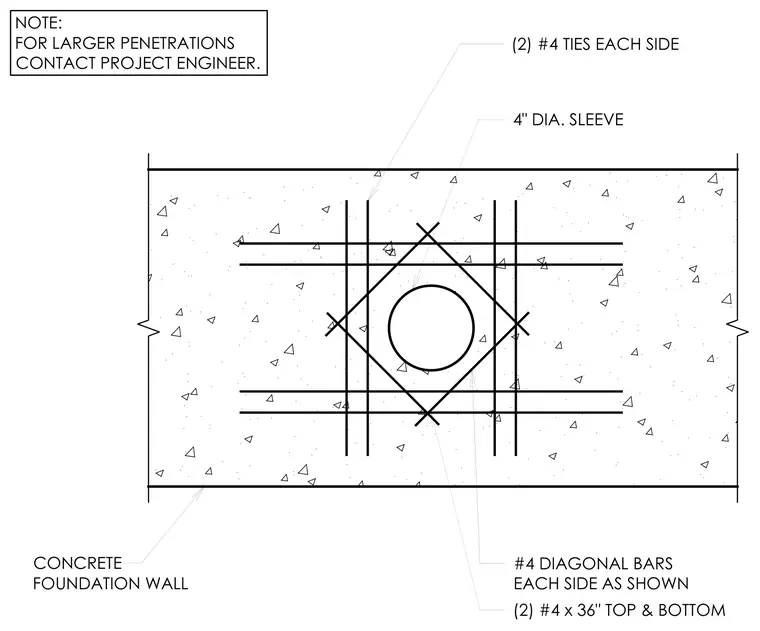

A concrete foundation wall penetration is reinforced with a four-inch diameter sleeve surrounded by specific steel reinforcing bars. Two number four diagonal bars are placed on each side as shown, complemented by two number four bars measuring thirty-six inches in length at the top and bottom. Two number four ties are positioned on each side of the opening. A note directs the contractor to contact the project engineer for larger penetrations.
#4 DIAGONAL BARS EACH SIDE AS SHOWN (2) #4 x 36" TOP & BOTTOM 4" DIA. SLEEVE (2) #4 TIES EACH SIDE CONCRETE FOUNDATION WALL NOTE: FOR LARGER PENETRATIONS CONTACT PROJECT ENGINEER. 7 7 A- A A A <7 2/7 A S 4 / A 7 A <7 A A < 1 A A A. A 4 <7 A <14 A A A <1 A A A A 4 A 4 4 4 _] 4 . 4 < ------ -4 < A. <4
