Typical Steel Beam to Steel Beam Connection

Materials

Concrete Steel Metal (misc.)Composite

Elements

Beams Floors / Slabs Decks Connections / Plates

Connections

Shear Stud / Composite

About this detail

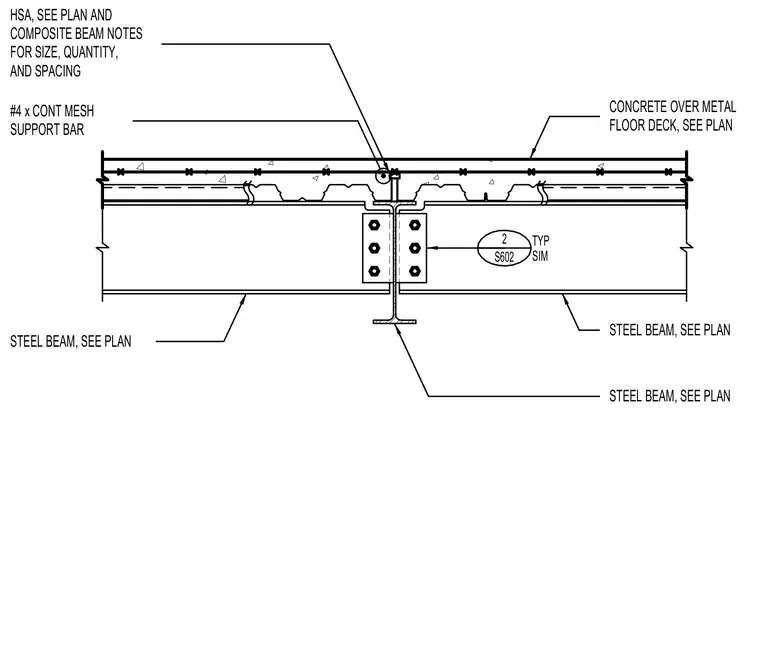

A typical steel beam to steel beam connection supports a concrete slab over a metal floor deck. Shear stud anchors are provided on the top flange of the steel beams per plan and composite beam notes for size, quantity, and spacing. A number four continuous mesh support bar runs parallel to the framing to support the wire mesh within the concrete topping. The secondary steel beam frames into the supporting steel beam with a bolted shear tab connection. All structural steel member sizes are to be verified per the structural plans.
