Structural · S-MJGC2

Wall Mounted Rideshare AV Panel

Materials

Elements

Walls Facades / Cladding Connections / Plates

About this detail

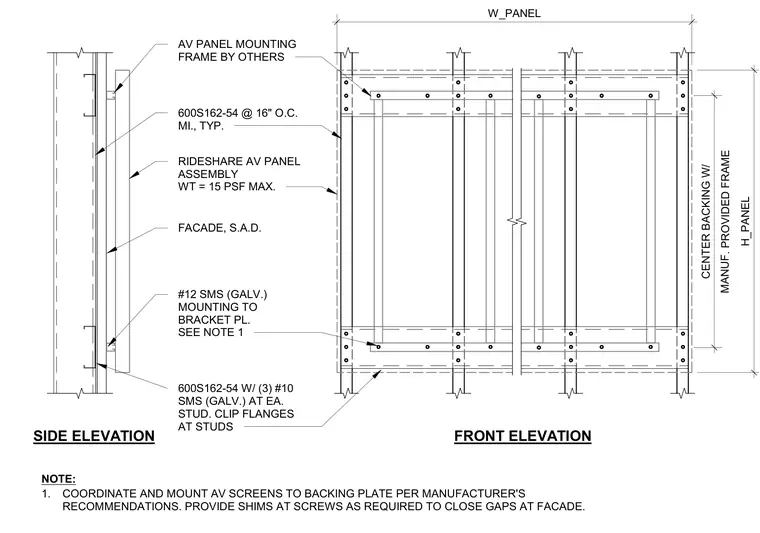

This assembly details a wall-mounted rideshare audio-visual panel with a maximum weight of 15 pounds per square foot. The support framing consists of 600S162-54 cold-formed steel studs spaced at 16 inches on center, fitted with clip flanges at each stud. Galvanized sheet metal screws, size #10, fasten the framing with three screws per stud. Galvanized #12 sheet metal screws secure the panel assembly to the bracket plate, with shims provided at the screws as required to close gaps at the facade. The audio-visual panel mounting frame is provided by others, centered on the backing with a manufacturer-provided frame.
