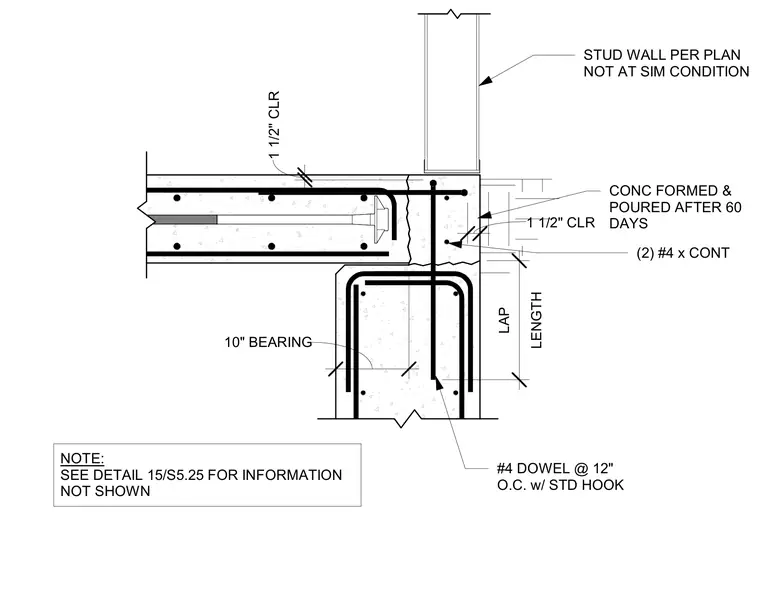

A post-tensioned concrete slab bears on a cast-in-place concrete basement wall with ten inches of bearing length. Number four dowels with standard hooks are spaced at twelve inches on center with one and a half inches of clear cover. Two continuous number four bars run longitudinally with a specified lap length. Concrete pour sequence requires the adjacent section to be formed and poured after sixty days. A stud wall sits above the slab per plan, not at similar conditions.
1 1/2" CLR #4 DOWEL @ 12" O.C. w/ STD HOOK CONC FORMED & POURED AFTER 60 DAYS (2) #4 x CONT STUD WALL PER PLAN NOT AT SIM CONDITION LENGTH LAP 1 1/2" CLR NOTE: SEE DETAIL 15/S5.25 FOR INFORMATION NOT SHOWN 10" BEARING
