Shear connector plates and single angle connections serve steel beams framing into wide flange and hollow structural section columns at various skew conditions. Condition A addresses skews up to thirty degrees, Condition B covers skews from thirty to forty-five degrees, and Condition C provides for skews from forty-five to sixty degrees using three-eighths by one inch beveled backing bars and specified plate thicknesses. The web plate and shear tabs connect the steel beam to the steel column utilizing standard bolt groups and fillet welds with a one-half inch stiffener plate where required. Clearances are maintained with specified minimum dimensions, and single angles are trimmed if wider than the column flange.

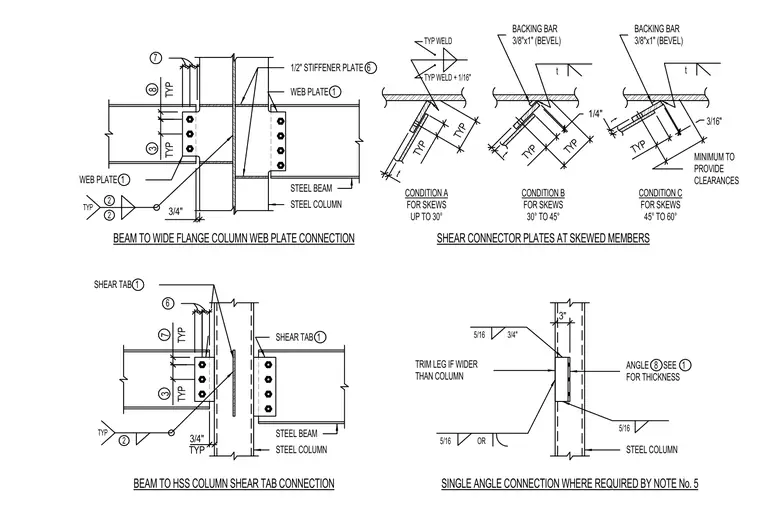

FOR THICKNESS ANGLE 8 SEE 1 TYP t TYP TYP t TYP TYP CLEARANCES PROVIDE MINIMUM TO 1/4" t TYP 3/16" 8 7 3 3/4" TYP 3" TYP 3/4" TYP 7 6 TYP 3 BEAM TO WIDE FLANGE COLUMN WEB PLATE CONNECTION TYP 2 2 WEB PLATE 1 WEB PLATE 1 STEEL BEAM STEEL COLUMN 1/2" STIFFENER PLATE 6 TYP WELD + 1/16" TYP WELD t BACKING BAR 3/8"x1" (BEVEL) t SHEAR CONNECTOR PLATES AT SKEWED MEMBERS CONDITION A FOR SKEWS UP TO 30° CONDITION B FOR SKEWS 30° TO 45° CONDITION C FOR SKEWS 45° TO 60° BACKING BAR 3/8"x1" (BEVEL) OR 5/16 STEEL COLUMN SINGLE ANGLE CONNECTION WHERE REQUIRED BY NOTE No. 5 SHEAR TAB 1 STEEL BEAM STEEL COLUMN 2 BEAM TO HSS COLUMN SHEAR TAB CONNECTION TYP SHEAR TAB 1 TRIM LEG IF WIDER THAN COLUMN 5/16 3/4" 5/16
