Typical Concrete Wall Reinforcing Details at Corners and Intersections

Elements

Walls Anchors / Embeds Reinforcing Roof / Floor Openings

Connections

About this detail

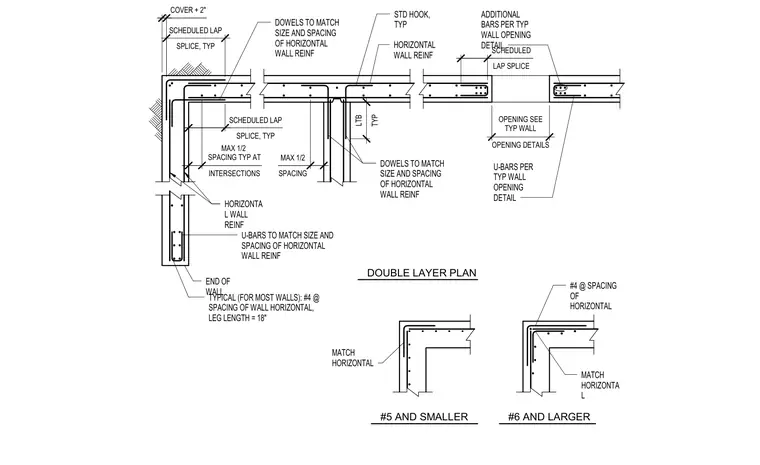

Concrete wall corners and intersections require specific horizontal rebar detailing and lap splices as shown in plan views. End-of-wall conditions incorporate number four U-bars with an eighteen-inch leg length or bars matching the size and spacing of the wall horizontal reinforcement. Intersections utilize dowels matching the horizontal wall reinforcement with scheduled lap splices and standard hooks, where spacing is reduced to a maximum of one-half standard spacing at cover plus two inches. Additional bars and U-bars are provided at wall openings per typical wall opening details, with distinct bar configurations for number five and smaller versus number six and larger reinforcing bars.
